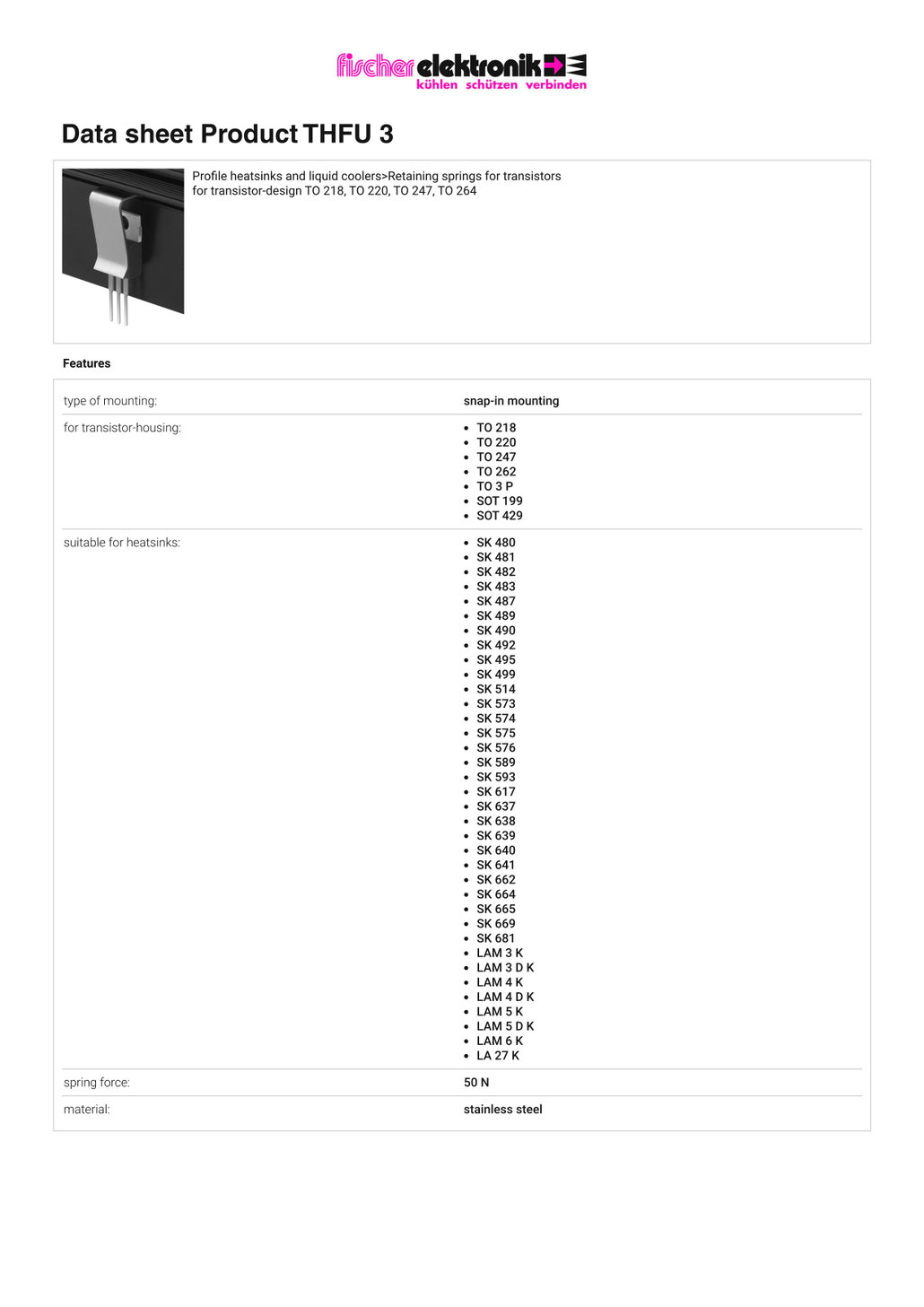

トランジスタ固定用スプリング データシート Fischer フィッシャー
·
16日 7月 2021

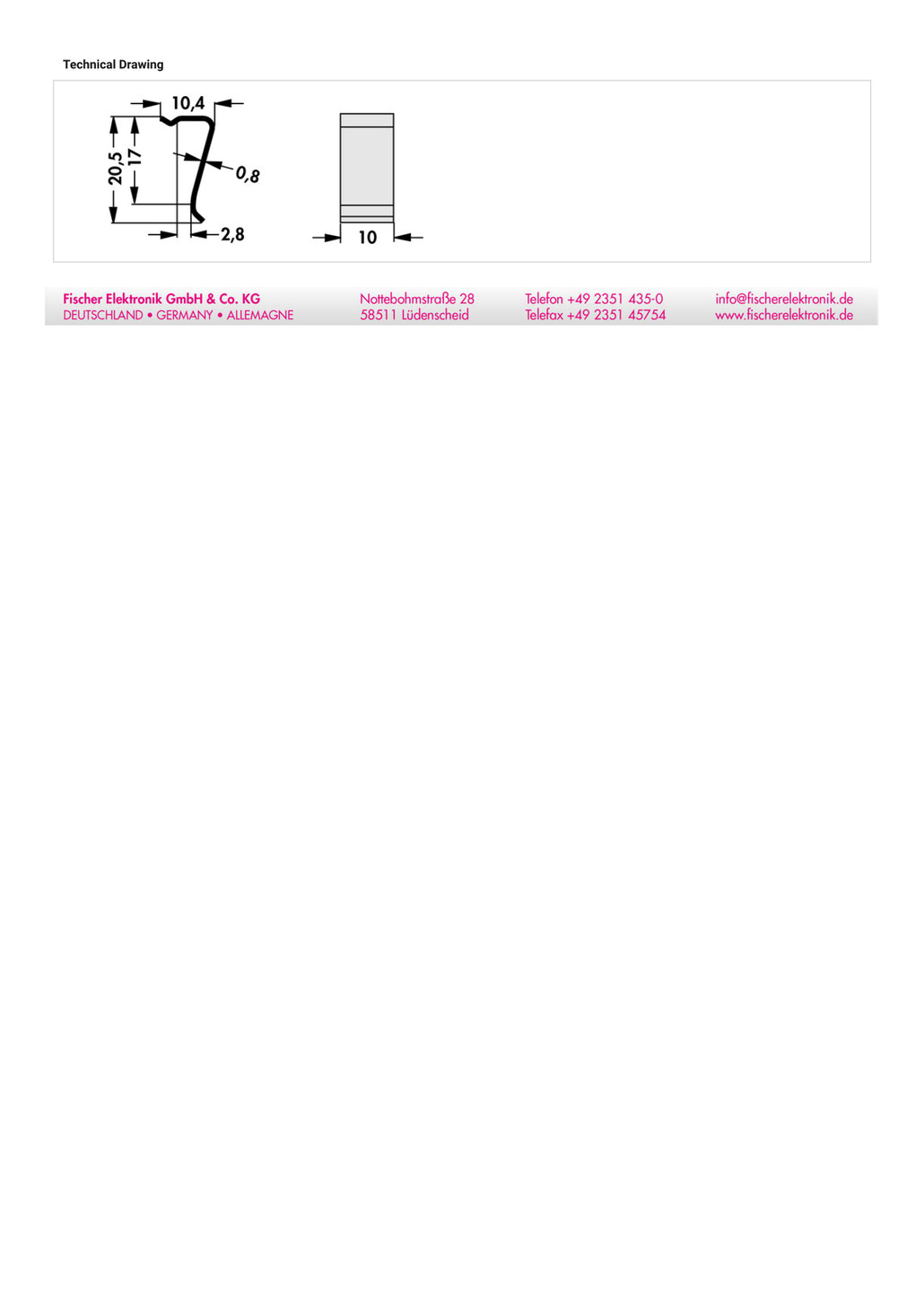

THFU 3 | 50 N | フィッシャー トランジスタ固定用スプリング
対応半導体パッケージ：
- TO 218
- TO 220
- TO 247
- TO 262
- TO 3 P
- SOT 199
- SOT 429
使用可能なヒートシンクおよび類似商品
Extruded heatsinks for lock-in retaining spring / SK 480 ...
10,3 x
28 mm, for THFU 1-4+6+7, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 481 ...
30 x 45 mm,
for THFU 1-4+6, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 482 ...
35,3 x 35
mm, for THFU 1-4+6+7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 483 ...
57 x 28 mm,
for THFU 1-4+6+7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 487 ...
52.3 x 28
mm, for THFU 1-4+6+7. profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 489 ...
29,4 x 45
mm, for THFU 1-6, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 490 ...
11 x 50 mm,
for THFU 1-7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 492 ...
16,8 x 26
mm, for THFU 1-3+6+7, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 495 ...
47,8 x 33
mm, for THFU 1-4+6+7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 499 ...
46 x 33 mm,
for THFU 1-4+6, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 514 ...
30 x 52 mm,
for THFU 1-4+6, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 573 ...
25 x 30 mm,
for THFU 1-3+6+7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 574 ...
32.3 x 28
mm, for THFU 1-3+6+7. profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 575 ...
6 x 50 mm,
for THFU 1-4+6, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 576 ...
25 x 45 mm,
for THFU 1-3+6+7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 589 ...
33
x 66,5 mm, for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 593 ...
75,5
x 60 mm, for THFU 1-4+6, profile threads
|
Miniature cooling aggregates / LAM 3 K ...
30 x 30 mm,
with axial fan
|
Miniature cooling aggregates / LAM 4 K ...
40 x 40 mm,
with axial fan, integrated clamp
|
Miniature cooling aggregates / LAM 5 K ...
50 x 50 mm,
with axial fan, integrated clamp
|
Retaining springs for transistors / THFU 1
for
transistor-design TO 218, TO 220, TO 247, TO 264
|
Retaining springs for transistors / THFU 2
for
transistor-design TO 218, TO 220, TO 247, TO 264
|
Extruded heatsinks for lock-in retaining spring / SK 617 ...
75,5
x 65,8 mm, for THFU 1-7, profile threads
|
Extruded heatsinks for lock-in retaining spring / SK 637 ...
23 x
38 mm, for THFU 1-3+6+7, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 638 ...
10,3 x 40
mm, for THFU 1-4+6+7, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 639 ...
30 x 45 mm,
for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 640 ...
30 x 59 mm,
for THFU 1-4+6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 641 ...
40 x 56 mm,
for THFU 1-4+6, profile-pressed threads
|
Miniature cooling aggregates / LAM 4 D ...
40
x 80.8 mm, with axial fan, integrated clamp
|
Miniature cooling aggregates / LAM 5 D ...
50 x 100.5
mm, with axial fan, integrated clamp
|
Miniature cooling aggregates / LAM 3 D ...
30
x 60.5 mm, with axial fan
|
Miniature cooling aggregates / LAM 6 K ...
60 x 60 mm,
with axial fan, integrated clamp
|
Miniature cooling aggregates / LAM 3 D K ...
30 x 60.5 mm, with
axial fan
|
Miniature cooling aggregates / LAM 4 D K ...
40 x 80.8 mm, with
axial fan, integrated clamp
|
Miniature cooling aggregates / LAM 5 D K ...
50 x 100.5 mm, with
axial fan, integrated clamp
|
Extruded heatsinks for lock-in retaining spring / SK 662 ...
40 x 75 mm,
for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 664 ...
40 x 60 mm,
for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 665 ...
34 x 75 mm,
for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 669 ...
34 x 60 mm,
for THFU 1-6, profile-pressed threads
|
Extruded heatsinks for lock-in retaining spring / SK 681 ...
16,5 x 40
mm, for THFU 1-3+6+7, profile-pressed threads
|
