フィッシャーエレクトロニック(Fischer Elektronik)ジャンプソケット   ジャンパー ジャンパーピン



CAB 5 ジャンプソケット 5.08mmピッチ



cab_5.tif
grid 5.08 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤、青、グレーから選択
cab_5.tif
grid 5.08 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤、青、グレーから選択
cab_5.tif
grid 5.08 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤、青、グレーから選択

CAB4. CAB6, CAB9 ジャンプソケット 2.54mmピッチ

cab4.tif
  • grid: 2.54 mm
grid 2.54 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤、青、グレーから選択
cab6.tif
  • grid: 2.54 mm
grid 2.54 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤、青、グレーから選択
cab9.tif
  • grid: 2.54 mm
grid 2.54 mm; for 0.6...0.64 mm wire wrap pins and Ø 0.6...0.7 mm The flexible contacts are shorting two pins. The jumpers…
*黒、赤から選択

CAB10, CAB11  ジャンプソケット 2mmピッチ

cab_10_11.tif
  • grid: 2 mm
grid 2.00 mm; for □ 0.5 mm and Ø 0.4...0.5 mm open design, suitable for miniature alligator clip.
*黒
cab_10_11.tif
  • grid: 2 mm
grid 2.00 mm; for □ 0.5 mm and Ø 0.4...0.5 mm open design, suitable for miniature alligator clip.
*黒

CAB15, CAB16  ジャンプソケット 1.27mmピッチ

cab15rgb.tif
  • grid: 1.27 mm
grid 1.27 mm; for □ 0.3...0.4 mm and Ø 0.4...0.5 mm
*黒
cab16g_cmyk.tif
  • grid: 1.27 mm
grid 1.27 mm; for □ 0.3...0.4 mm and Ø 0.4...0.5 mm
*黒、赤、青から選択

LB シリーズ

lb.tif
LB 02 G
  • A: 5.08 mm
  • B: 2 mm
without insulator
lb.tif
LB 03 G
  • A: 7.62 mm
  • B: 4.5 mm
without insulator
lb.tif
LB 04 G
  • A: 10.16 mm
  • B: 7 mm
without insulator
lb.tif
LB 06 G
  • A: 15.24 mm
  • B: 12 mm
without insulator

CB シリーズ

cb.tif
CB 1
  • A: 2.54 mm
without insulator
cb.tif
CB 3
  • A: 5.08 mm
without insulator
cb.tif
CB 6
  • A: 7.62 mm
without insulator

LEB シリーズ

leb.tif
LEB 01 G
  • A: 2.54 mm
polyester, self-extinguishing
leb.tif
LEB 02 G
  • A: 5.08 mm
polyester, self-extinguishing
leb.tif
LEB 03 G
  • A: 7.62 mm
polyester, self-extinguishing

PSB 3 G

  • Grid:7.62mm
  • Insulator: polysulfone, UL 94 V-0



CAB 3 シリーズ

cab_3_03.tif
CAB 3 06 03 Z
  • A: 7.3 mm
  • B: 5.08 mm
Separable jumpers for soldering technology, grid 2.54 mm; the contacts have a preformed dividing groove and can easily be separated with a screwdriver
cab_3_03.tif
CAB 3 08 03 Z
  • A: 9.84 mm
  • B: 7.62 mm
Separable jumpers for soldering technology, grid 2.54 mm; the contacts have a preformed dividing groove and can easily be separated with a screwdriver
cab_3_03.tif
CAB 3 12 03 Z
  • A: 14.92 mm
  • B: 12.7 mm
Separable jumpers for soldering technology, grid 2.54 mm; the contacts have a preformed dividing groove and can easily be separated with a screwdriver
cab_3_03.tif
CAB 3 14 03 Z
  • A: 17.46 mm
  • B: 15.24 mm
Separable jumpers for soldering technology, grid 2.54 mm; the contacts have a preformed dividing groove and can easily be separated with a screwdriver
cab_3_03.tif
CAB 3 16 03 Z
  • A: 20 mm
  • B: 17.78 mm
Separable jumpers for soldering technology, grid 2.54 mm; the contacts have a preformed dividing groove and can easily be separated with a screwdriver

LB SL シリーズ

lb_sl.tif
LB SL 0508
  • A: 5.08 mm
grid 2.54 mm - □ 0.635 mm
lb_sl.tif
LB SL 0762
  • A: 7.62 mm
grid 2.54 mm - □ 0.635 mm
lb_sl.tif
LB SL 1016
  • A: 10.16 mm
grid 2.54 mm - □ 0.635 mm
lb_sl.tif
LB SL 1524
  • A: 15.24 mm
grid 2.54 mm - □ 0.635 mm

LB SLY 06 シリーズ

Fischer Elektronik LB SLY 06 ジャンパーピン 連結タイプ
Fischer Elektronik LB SLY 06 ジャンパーピン 連結タイプ

A:6mm

ピン間:2㎜ピッチ

コンタクト:1-50から選択

メッキ:金、もしくはスズから選択

ダウンロード
Fischer Elektronik LB SLY 06 ジャンパーピン 連結タイプ データシート
Home - Fischerelektronik - LB SLY 06.pdf
PDFファイル 280.6 KB

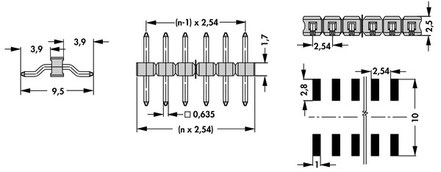

LB SL LP 039 SMD (表面実装タイプ)

Fischer Elektronik LB SL LP 039 SMD 表面実装用 ジャンパー 連結タイプ
Fischer Elektronik LB SL LP 039 SMD 表面実装用 ジャンパー 連結タイプ

2.54㎜ピッチ

コンタクト:2-20から選択

メッキ:金、もしくはスズから選択

ダウンロード
Fischer Elektronik LB SL LP 039 SMD 表面実装用 ジャンパー 連結タイプ データシート
Home - Fischerelektronik - LB SL LP 039
PDFファイル 328.1 KB
