フィッシャーエレクトロニック（Fischer Elektronik）軸流ファン付ヒートシンク

*下の画像はあくまでイメージですので、詳細に関しては、メーカーホームページにてご確認願います。

*品名もしくは型番をクリックいただくとメーカーホームページに移動します。

ミニチュアタイプ

人気型番




lam1.tif
75 x 75 mm, with axial fan
  • made for dissipation of high power within a very small space
  • fixed length is optimised to the fan
  • slide-nut channels for M3 nuts for mounting the transistors and circuit boards
  • other fan types and fan voltages on…
lam2.tif
50 x 50 mm, with axial fan
  • made for dissipation of high power within a very small space
  • fixed length is optimised to the fan
  • slide-nut channels for M3 nuts for mounting the transistors and circuit boards
  • other fan types and fan voltages on…
lam2.tif
50 x 50 mm, with axial fan
pre-assembled with Molex case 6471 including alarm output, 3 pins; strand length: 70 mm
  • made for dissipation of high power within a very small space
  • fixed length is optimised to the fan
  • slide-nut channels for M3 nuts for…

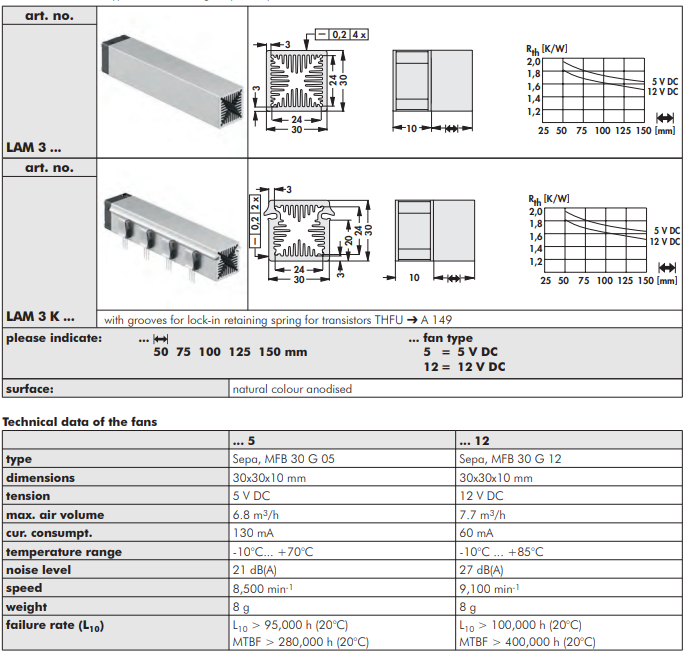

lam3.tif
30 x 30 mm, with axial fan
  • compact design
  • homogeneous heat dissipation
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and processing according to customer´s requirements…
lam3k.tif
30 x 30 mm, with axial fan

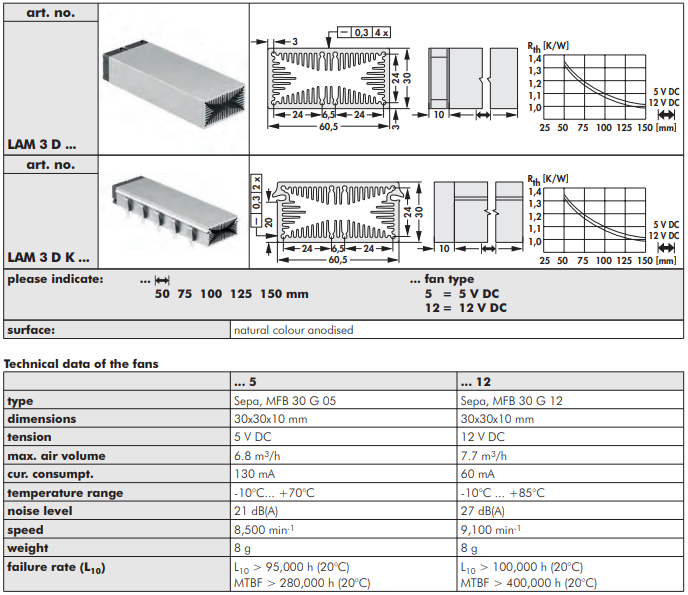

lam3d.tif
30 x 60.5 mm, with axial fan
lam3d_k.tif
30 x 60.5 mm, with axial fan
  • compact design
  • homogeneous heat distribution
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and machinings according to customer's…

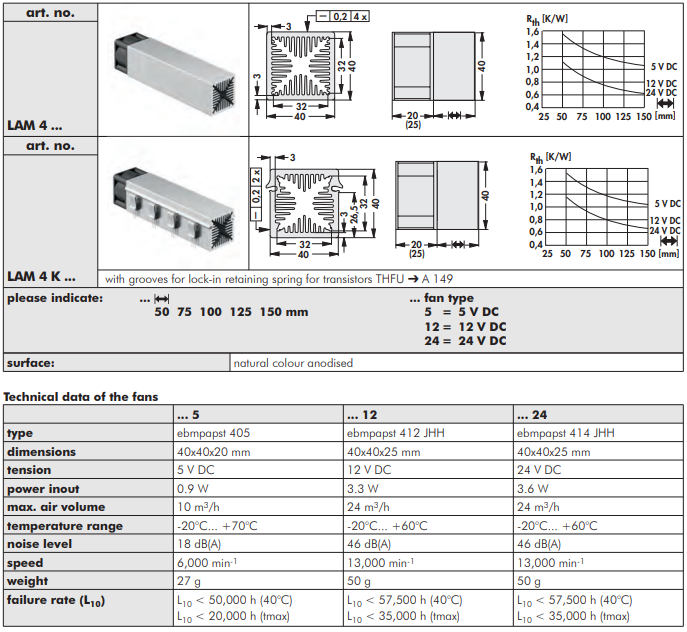

lam4.tif
40 x 40 mm, with axial fan
lam4k.tif
40 x 40 mm, with axial fan, integrated clamp

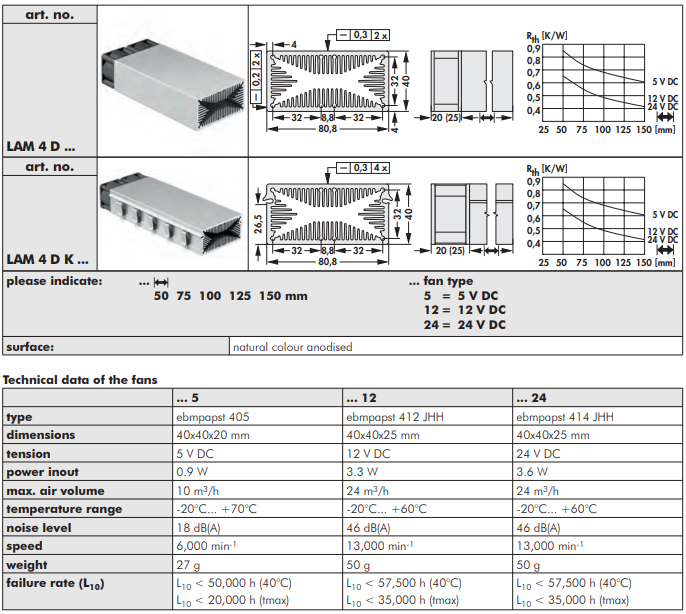

lam4d.tif
40 x 80.8 mm, with axial fan, integrated clamp
lam4d_k.tif
40 x 80.8 mm, with axial fan, integrated clamp
  • compact design
  • homogeneous heat distribution
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and…

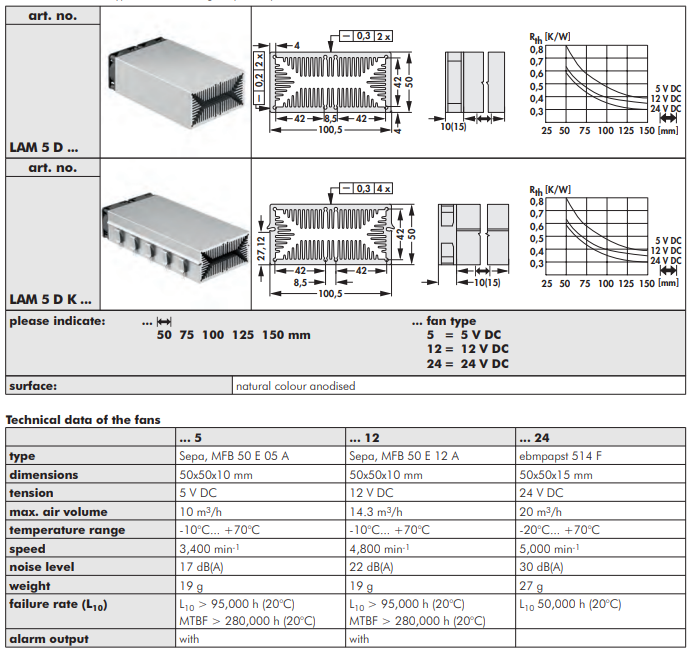

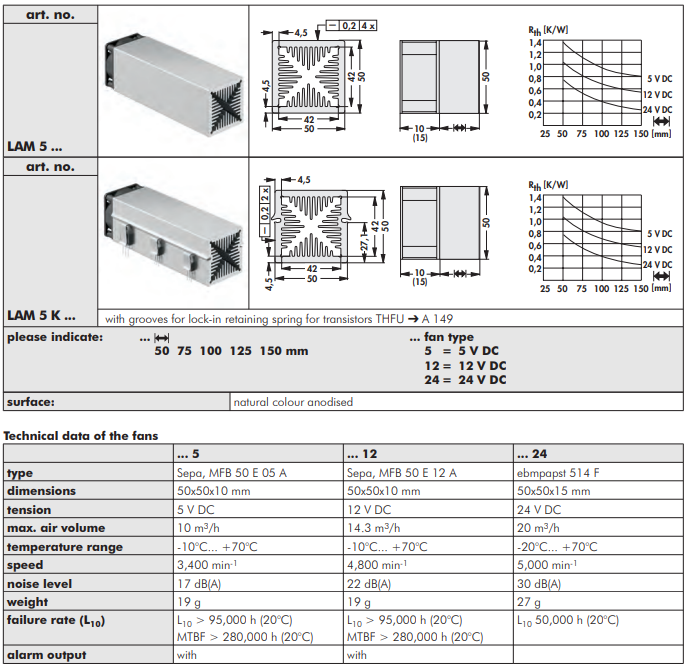

lam5.tif
50 x 50 mm, with axial fan
50 x 50 mm, with axial fan, integrated clamp
lam5d.tif
50 x 100.5 mm, with axial fan, integrated clamp
lam5d_k.tif
50 x 100.5 mm, with axial fan, integrated clamp
  • compact design
  • homogeneous heat distribution
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and…

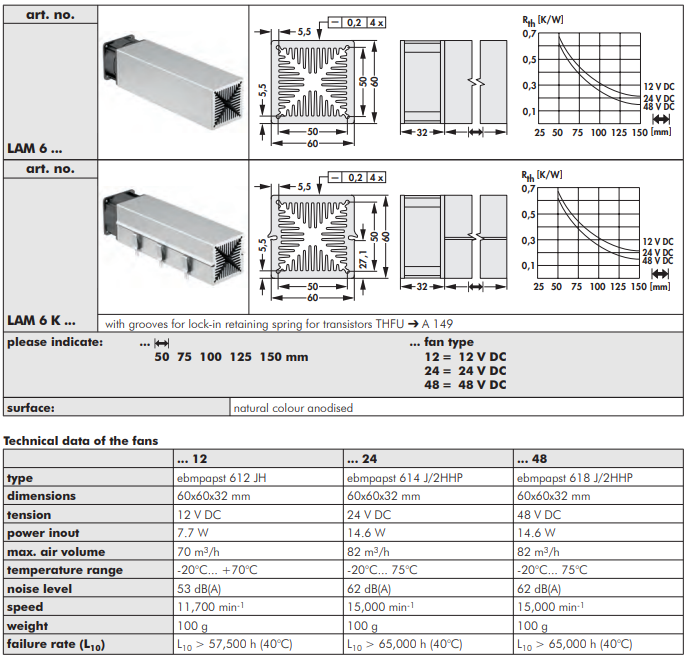

lam6.tif
60 x 60 mm, with axial fan
  • compact design
  • homogeneous heat distribution
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and machinings according to customer's…
lam6k.tif
60 x 60 mm, with axial fan, integrated clamp
  • compact design
  • homogeneous heat distribution
  • mounting possible on any side
  • powerful axial-fan motor
  • other lengths, special designs and…



標準タイプ


la27k.tif
LA 27 K ...
  • fan type:
    • 12 V DC
    • 24 V DC
75,5 x 65,8 mm, with axial fan
la4.tif
LA 4 ...
  • fan type:
    • 24 V DC
    • 230 V AC
119 x 119 mm, with axial fan
la5.tif
LA 5 ...
  • fan type:
    • 24 V DC
    • 230 V AC
112 x 116 mm, with axial fan; * for one segment
la6.tif
LA 6 ...
  • fan type:
    • 12 V DC
    • 24 V DC
62 x 74 mm, with axial fan
la7.tif
LA 7 ...
  • fan type:
    • 12 V DC
    • 24 V DC
125 x 74 mm, with axial fan
la8.tif
LA 8 ...
  • fan type:
    • 12 V DC
    • 24 V DC
188 x 74 mm, with axial fan
la_v6.tif
LA V 6 ...
  • fan type:
    • 12 V DC
    • 24 V DC
62 x 74 mm, with axial fan and air-flow chamber
la_v7.tif
LA V 7 ...
  • fan type:
    • 12 V DC
    • 24 V DC
125 x 74 mm, with axial fan and air-flow chamber
la_v8.tif
LA V 8 ...
  • fan type:
    • 12 V DC
    • 24 V DC
188 x 74 mm, with axial fan and air-flow chamber
la_28.tif
LA 28 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
66 x 65 mm, with axial fan
High performance cooling aggregate
  • compact construction by means of connected extruded profiles
  • excellent efficiency by means of flow-optimised hollow fin structure
  • powerful axial fans
  • double-sided precise milled…
la_29.tif
LA 29 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
125 x 65 mm, with axial fan
la_30.tif
LA 30 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
190 x 65 mm, with axial fan
la_v28.tif
LA V 28 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
65 x 65 mm, with axial fan and air-flow chamber
High performance cooling aggregate
  • additional efficiency enhancement and noise reduction by means of air-technically adjusted airflow chambers
  • excellent thermal efficiency in connection with powerful axial fans…
la_v29.tif
LA V 29 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
125 x 65 mm, with axial fan and air-flow chamber
la_v30.tif
LA V 30 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
190 x 65 mm, with axial fan and air-flow chamber
la9.tif
LA 9 ...
  • fan type:
    • 24 V DC
    • 230 V AC
80 x 83 mm, with axial fan
la10.tif
LA 10 ...
  • fan type:
    • 24 V DC
    • 230 V AC
160 x 83 mm, with axial fan
la11.tif
LA 11 ...
  • fan type:
    • 24 V DC
    • 230 V AC
240 x 83 mm, with axial fan
la_v9.tif
LA V 9 ...
  • fan type:
    • 24 V DC
    • 230 V AC
80 x 83 mm, with axial fan and air-flow chamber
la_v10.tif
LA V 10 ...
  • fan type:
    • 24 V DC
    • 230 V AC
160 x 83 mm, with axial fan and air-flow chamber
la_v11.tif
LA V 11 ...
  • fan type:
    • 24 V DC
    • 230 V AC
240 x 83 mm, with axial fan and air-flow chamber
la_31.tif
LA 31 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
85 x 85 mm, with axial fan
High performance cooling aggregate
  • compact construction by means of connected extruded profiles
  • excellent efficiency by means of flow-optimised hollow fin structure
  • powerful axial fans
  • double-sided precise milled…
la_32.tif
LA 32 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
164,6 x 85 mm, with axial fan
la_33.tif
LA 33 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
244,2 x 85 mm, with axial fan
la_v31.tif
LA V 31...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
85 x 85 mm, with axial fan and air-flow chamber
High performance cooling aggregate
  • additional efficiency enhancement and noise reduction by means of air-technically adjusted airflow chambers
  • excellent thermal efficiency in connection with powerful axial fans…
la_v32.tif
LA V 32 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
164,6 x 85 mm, with axial fan and air-flow chamber
la_v33.tif
LA V 33 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
244,2 x 85 mm, with axial fan and air-flow chamber
la34.tif
LA 34 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
80 x 83 mm, with axial fan
la35.tif
LA 35 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
160.6 x 83 mm, with axial fan
la34v.tif
LA V 34 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
80 x 83 mm, with axial fan and air-flow chamber
la35v.tif
LA V 35 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
160.6 x 83 mm, with axial fan and air-flow chamber
la14.tif
LA 14 ...
  • fan type:
    • 24 V DC
    • 230 V AC
120 x 120 mm, with axial fan
la15.tif
LA 15 ...
  • fan type:
    • 24 V DC
    • 230 V AC
240 x 120 mm, with axial fan
la_v14.tif
LA V 14 ...
  • fan type:
    • 24 V DC
    • 230 V AC
120 x 120 mm, with axial fan and air-flow chamber
la_v15.tif
LA V 15 ...
  • fan type:
    • 24 V DC
    • 230 V AC
240 x 120 mm, with axial fan and air-flow chamber
la17.tif
LA 17 ...
  • fan type:
    • 24 V DC
    • 230 V AC
122 x 120 mm, with axial fan
la18.tif
LA 18 ...
  • fan type:
    • 24 V DC
    • 230 V AC
120 x 243 mm, with axial fan
la_v17.tif
LA V 17 ...
  • fan type:
    • 24 V DC
    • 230 V AC
122 x 120 mm, with axial fan and air-flow chamber
la_v18.tif
LA V 18 ...
  • fan type:
    • 24 V DC
    • 230 V AC
120 x 243 mm, with axial fan and air-flow chamber
la21.tif
LA 21 ...
  • fan type:
    • 24 V DC
    • 230 V AC
92 x 92 mm, with axial fan
la22.tif
LA 22 ...
  • fan type:
    • 24 V DC
    • 230 V AC
93 x 184 mm, with axial fan
la_v21.tif
LA V 21 ...
  • fan type:
    • 24 V DC
    • 230 V AC
92 x 92 mm, with axial fan and air-flow chamber
la_v22.tif
LA V 22 ...
  • fan type:
    • 24 V DC
    • 230 V AC
93 x 184 mm, with axial fan and air-flow chamber
la_v24.tif
LA V 24 ...
  • fan type:
    • 24 V DC
    • 230 V AC
155 x 158 mm, with axial fan and air-flow chamber
la_hl1.tif
LA HL 1 ...
  • fan type: 230 V AC
129 x 115 mm, with axial fan
la_hl2.tif
LA HL 2 ...
  • fan type: 230 V AC
258 x 115 mm, with axial fan
la_hl3.tif
LA HL 3 ...
  • fan type: 230 V AC
387 x 115 mm, with axial fan
la_hlv1.tif
LA HLV 1 ...
  • fan type: 230 V AC
129 x 115 mm, with axial fan and air-flow chamber
la_hlv2.tif
LA HLV 2 ...
  • fan type: 230 V AC
258 x 115 mm, with axial fan and air-flow chamber
la_hlv3.tif
LA HLV 3 ...
  • fan type: 230 V AC
387 x 115 mm, with axial fan and air-flow chamber
lahl_d1.tif
LAHL D 1 ...
  • fan type:
    • 12 V DC
    • 24 V DC
High performance cooling aggregate
la_hpk1.tif
LA HPK 1 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
  • cooling aggregates of special conception with pressed in fins
  • enlarged surface by means of fluted fin geometry
  • flow-optimised hollow fin structure
  • milled flat mounting surface for component assembly
  • maximum heatsink length 300 mm…
la_v_hpk1.tif
LA V HPK 1 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
  • cooling aggregates of special conception with pressed in fins
  • enlarged surface by means of fluted fin geometry
  • flow-optimised hollow fin structure
  • milled flat mounting surface for component assembly
  • maximum heatsink length 300 mm…
la_hpk2.tif
LA HPK 2 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
  • cooling aggregates of special conception with pressed in fins
  • enlarged surface by means of fluted fin geometry
  • flow-optimised hollow fin structure
  • milled flat mounting surface for component assembly
  • maximum heatsink length 300 mm…
la_v_hpk2.tif
LA V HPK 2 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 48 V DC
  • cooling aggregates of special conception with pressed in fins
  • enlarged surface by means of fluted fin geometry
  • flow-optimised hollow fin structure
  • milled flat mounting surface for component assembly
  • maximum heatsink length 300 mm…
LA HPK 3 ...
  • fan type:
    • 24 V DC
    • 230 V AC
  • high performance cooling aggregates of special design
  • optimal pressed in single lamellae
  • low pressure losses due to adjusted fin geometry
  • smallest fin spacings give a big heat exchange area
  • maximum heatsink length 300 mm…
LA V HPK 3 ...
  • fan type:
    • 24 V DC
    • 230 V AC
  • high performance cooling aggregates of special design
  • optimal pressed in single lamellae
  • low pressure losses due to adjusted fin geometry
  • smallest fin spacings give a big heat exchange area
  • maximum heatsink length 300 mm…
la_hpk4.tif
LA HPK 4 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 230 V AC
  • high performance cooling aggregates of special design
  • optimal pressed in single lamellae
  • low pressure losses due to adjusted fin geometry
  • smallest fin spacings give a big heat exchange area
  • maximum heatsink length 300 mm…
la_v_hpk4.tif
LA V HPK 4 ...
  • fan type:
    • 12 V DC
    • 24 V DC
    • 230 V AC
  • high performance cooling aggregates of special design
  • optimal pressed in single lamellae
  • low pressure losses due to adjusted fin geometry
  • smallest fin spacings give a big heat exchange area
  • maximum heatsink length 300 mm…
HPK ...
  • fan type: -
High performance heatsinks
  • flexible designable heatsink solutions
  • modular system with different fin heights
  • for free and forced convection
  • milled flat semiconductor mounting surface
  • maximum heatsink length 420 mm
  • customer specific designs, machinings…



  連絡先：

〒111-0051

東京都台東区蔵前３丁目１７−３

TEL:050-3748-1755

Mail: sales@ethosjapan.com
