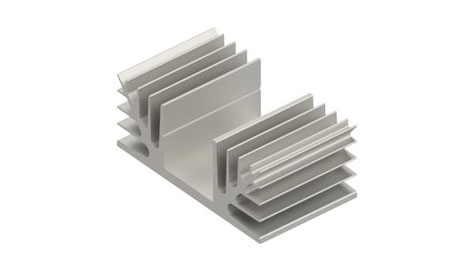

フィッシャーエレクトロニック(Fischer Elektronik)アルミ押出ヒートシンク

*下の画像はあくまでイメージですので、詳細に関しては、メーカーホームページにてご確認願います。

*品名もしくは型番をクリックいただくとメーカーホームページに移動します。

*穴あけなどの追加工、標準品との長さ違い、などご要望ございましたらお気軽にご相談ください。


sk674_.eps
SK 674 ...
  • thermal resistance: 34 - 23 K/W
4.8 x 6.3 mm
sk586_.eps
SK 586 ...
  • thermal resistance: 38 - 22.5 K/W
8 x 6 mm
sk616_ick_smd_n_.eps
SK 616 ...
  • thermal resistance: 31 - 22.2 K/W
8 x 6 mm
sk496_.eps
SK 496 ...
  • thermal resistance: 31 - 25 K/W
10 x 6 mm
sk646_.eps
SK 646 ...
  • thermal resistance: 25 - 31 K/W
10 x 6 mm
sk565_.eps
SK 565 ...
  • thermal resistance: 19 - 8 K/W
10 x 10 mm
sk470_.eps
SK 470 ...
  • thermal resistance: 19 - 8 K/W
  • drilling pattern:
    • SOT 32
    • TO 220
11.8 x 8 mm, for pcb mounting SK 470 ... STS
sk676_.eps
SK 676 ...
  • thermal resistance: 11 - 6.3 K/W
12 x 16 mm
sk95_.eps
SK 95 ...
  • thermal resistance: 32 - 13 K/W
12.6 x 6.5 mm
sk522_.eps
SK 522 ...
  • thermal resistance: 36 - 25.5 K/W
12.6 x 6.5 mm
sk469_.eps
SK 469 ...
  • thermal resistance: 12.2 - 5.8 K/W
  • drilling pattern:
    • SOT 32
    • TO 220
13,5 x 15,24 mm, for pcb mounting SK 469 ... STS
sk478_.eps
SK 478 ...
  • thermal resistance: 30.2 - 24.2 K/W
14 x 6 mm
sk552_.eps
SK 552 ...
  • thermal resistance: 30.2 - 24.2 K/W
14 x 10 mm
sk558_.eps
SK 558 ...
  • thermal resistance: 30.2 - 24.2 K/W
14 x 14 mm
sk521_.eps
SK 521 ...
  • thermal resistance: 24.8 - 18.9 K/W
15,3 x 8 mm
sk437_.eps
SK 437 ...
  • thermal resistance: 24 - 7 K/W
  • drilling pattern:
    • TO 218
    • TO 220
    • TO 247
    • TO 248
16 x 16 mm, for pcb mounting SK 437 ... STC / STS
sk675_.eps
SK 675 ...
  • thermal resistance: 25.6 - 19 K/W
19 x 4.8 mm
sk631_.eps
SK 631 ...
  • thermal resistance: 28.3 - 22.3 K/W
19 x 6 mm
sk632_.eps
SK 632 ...
  • thermal resistance: 23.5 - 17.5 K/W
19 x 10 mm
sk633_.eps
SK 633 ...
  • thermal resistance: 18.8 - 12.8 K/W
19 x 14 mm
sk476_.eps
SK 476 ...
  • thermal resistance: 24.9 - 18.9 K/W
21 x 6 mm
sk652_.eps
SK 652 ...
  • thermal resistance: 20.8 - 15.45 K/W
21 x 10 mm
sk653_.eps
SK 653 ...
  • thermal resistance: 17.4 - 12.05 K/W
21 x 14 mm
sk454_.eps
SK 454 ...
  • thermal resistance: 10.1 - 4.9 K/W
  • drilling pattern:
    • SOT 32
    • TO 220
21.45 x 19 mm, for pcb mounting SK 454 ... x M3 / M3 L
sk477_.eps
SK 477 ...
  • thermal resistance: 23.2 - 17.2 K/W
23 x 6 mm
sk582_.eps
SK 582 ...
  • thermal resistance: 17 - 11 K/W
35,3 x 35 mm
sk559_.eps
SK 559 ...
  • thermal resistance: 23.2 - 17.2 K/W
23 x 12.3 mm
sk551_.eps
SK 551 ...
  • thermal resistance: 23.2 - 17.2 K/W
24.2 x 12.3 mm
sk486_.eps
SK 486 ...
  • thermal resistance: 14 - 5 K/W
25,8 x 8 mm
sk473_.eps
SK 473 ...
  • thermal resistance: 19.9 - 14.9 K/W
27 x 6 mm
sk554_.eps
SK 554 ...
  • thermal resistance: 19.9 - 14.9 K/W
27 x 10 mm
sk447_.eps
SK 447 ...
  • thermal resistance: 9 - 5.1 K/W
27 x 10 mm
sk560_.eps
SK 560 ...
  • thermal resistance: 19.9 - 14.9 K/W
27 x 14 mm
sk566_.eps
SK 566 ...
  • thermal resistance: 9 - 5.1 K/W
27 x 22 mm
sk561_.eps
SK 561 ...
  • thermal resistance: 9 - 5.1 K/W
27,95 x 8 mm
sk448_.eps
SK 448 ...
  • thermal resistance: 11.1 - 5 K/W
27.95 x 12.5 mm, for pcb mounting SK 448 ... x M3 L
sk177_.eps
SK 177 ...
  • thermal resistance: 7.1 - 4.1 K/W
27,95 x 15,24 mm
sk550_.eps
SK 550 ...
  • thermal resistance: 10 - 6.7 K/W
29 x 11.5 mm
sk452_.eps
SK 452 ...
  • thermal resistance: 11.1 - 3.9 K/W
29 x 25 mm, for pcb mounting SK 452 ... x M3
sk677_.eps
SK 677 ...
  • thermal resistance: 11 - 6.7 K/W
30 x 7.5 mm
sk597_.eps
SK 597 ...
  • thermal resistance: 12.5 - 5.8 K/W
30 x 17,5 mm
sk493_.eps
SK 493 ...
  • thermal resistance: 18.2 - 12.1 K/W
31 x 6 mm
sk581_.eps
SK 581 ...
  • thermal resistance: 17.8 - 11.6 K/W
31 x 10 mm
sk634_.eps
SK 634 ...
  • thermal resistance: 17.5 - 11.3 K/W
33 x 6 mm
sk635_.eps
SK 635 ...
  • thermal resistance: 16.8 - 10.6 K/W
33 x 10 mm
sk400_.eps
SK 400 ...
  • thermal resistance: 7.8 - 4.2 K/W
33 x 10 mm, for pcb mounting SK 400 ... x M3 L
sk636_.eps
SK 636 ...
  • thermal resistance: 15.9 - 9.7 K/W
33 x 14 mm
sk460_.eps
SK 460 ...
  • thermal resistance: 7.9 - 4.5 K/W
34 x 20 mm
sk126_.eps
SK 126 ...
  • thermal resistance: 9.5 - 5.2 K/W
34.5 x 12.7 mm
sk178_.eps
SK 178 ...
  • thermal resistance: 6.9 - 3.8 K/W
34,5 x 16,5 mm
sk134_.eps
SK 134 ...
  • thermal resistance: 4.7 - 2.8 K/W
34,5 x 50 mm
sk683_.eps
SK 683 ...
  • thermal resistance: 5 - 2.9 K/W
34.6 x 25 mm
sk471_.eps
SK 471 ...
  • thermal resistance: 17.1 - 11.1 K/W
35 x 6 mm
sk587_.eps
SK 587 ...
  • thermal resistance: 14.6 - 10.4 K/W
35 x 10 mm
sk549_.eps
SK 549 ...
  • thermal resistance: 8.25 - 4.8 K/W
35 x 10 mm
sk562_.eps
SK 562 ...
  • thermal resistance: 7.75 - 4.25 K/W
35 x 14 mm
sk654_.eps
SK 654 ...
  • thermal resistance: 5.4 - 2.4 K/W
35 x 70 mm
sk509_.eps
SK 509 ...
  • thermal resistance: 7.2 - 4.1 K/W
36 x 12.3 mm
sk657_.eps
SK 657 ...
  • thermal resistance: 7.75 - 3.31 K/W
36.8 x 25 mm
sk563_.eps
SK 563 ...
  • thermal resistance: 14.9 - 9.1 K/W
37 x 6 mm
sk564_.eps
SK 564 ...
  • thermal resistance: 14.3 - 6.3 K/W
37 x 10 mm
sk174_.eps
SK 174 ...
  • thermal resistance: 5.9 - 3.1 K/W
38 x 30 mm
sk179_.eps
SK 179 ...
  • thermal resistance: 6.9 - 4 K/W
38,1 x 16,5 mm
sk456_.eps
SK 456 ...
  • thermal resistance: 15.1 - 9.1 K/W
40 x 6 mm, for pcb mounting SK 456 ... x M3 L
sk420_.eps
SK 420 ...
  • thermal resistance: 14 - 8 K/W
40 x 8 mm
sk513_.eps
SK 513 ...
  • thermal resistance: 14 - 8 K/W
40 x 10 mm
sk547_.eps
SK 547 ...
  • thermal resistance: 13.8 - 8.03 K/W
40 x 10 mm
sk106_.eps
SK 106 ...
  • thermal resistance: 5.2 - 2.9 K/W
40 x 27 mm
sk472_.eps
SK 472 ...
  • thermal resistance: 5.9 - 2.9 K/W
41.5 x 22 mm
sk189_.eps
SK 189 ...
  • thermal resistance: 4.1 - 1.4 K/W
41.5 x 34 mm
sk679_.eps
SK 679 ...
  • thermal resistance: 3.9 - 1.5 K/W
41.8 x 41 mm
sk423_.eps
SK 423 ...
  • thermal resistance: 12.9 - 6.2 K/W
43,1 x 8 mm
sk422_.eps
SK 422 ...
  • thermal resistance: 6.6 - 3.2 K/W
43,1 x 16,51 mm
sk511_.eps
SK 511 ...
  • thermal resistance: 14 - 9 K/W
45 x 6 mm
sk626_.eps
SK 626 ...
  • thermal resistance: 5.5 - 2.5 K/W
45 x 22 mm
sk453_.eps
SK 453 ...
  • thermal resistance: 3.1 - 1.3 K/W
  • drilling pattern: SSR 1
45 x 60 mm
sk455_.eps
SK 455 ...
  • thermal resistance: 2.8 - 1 K/W
  • drilling pattern: SSR 4
45 x 80 mm
sk467_.eps
SK 467 ...
  • thermal resistance: 2.6 - 0.95 K/W
  • drilling pattern:
    • SSR 1
    • SSR 4
45 x 85 mm
sk424_.eps
SK 424 ...
  • thermal resistance: 6 - 3.1 K/W
45,7 x 16,51 mm
sk666_.eps
SK 666 ...
  • thermal resistance: 3.9 - 1.6 K/W
48 x 40 mm
sk425_.eps
SK 425 ...
  • thermal resistance: 5.9 - 3.1 K/W
48,3 x 16,51 mm
sk445_.eps
SK 445 ...
  • thermal resistance: 3.9 - 1.5 K/W
49,5 x 38 mm
sk450_.eps
SK 450 ...
  • thermal resistance: 3 - 1.25 K/W
49,5 x 50 mm
sk548_.eps
SK 548 ...
  • thermal resistance: 10.45 - 4.65 K/W
50 x 10 mm
sk567_.eps
SK 567 ...
  • thermal resistance: 10.45 - 4.65 K/W
50 x 25 mm
sk434_.eps
SK 434 ...
  • thermal resistance: 3.6 - 1.25 K/W
  • drilling pattern:
    • SSR 1
    • SSR 4
50 x 40 mm
sk475_.eps
SK 475 ...
  • thermal resistance: 4 - 1.9 K/W
50 x 45 mm
sk527_.eps
SK 527 ...
  • thermal resistance: 3.1 - 1.3 K/W
50 x 60 mm
sk427_.eps

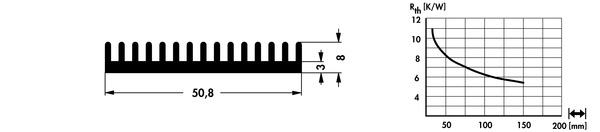

SK 427 ...
  • thermal resistance: 11 - 5.5 K/W
50,8 x 8 mm

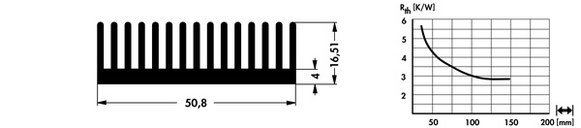

sk426_.eps
SK 426 ...
  • thermal resistance: 5.7 - 2.8 K/W
50,8 x 16,51 mm

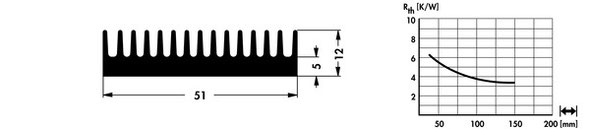

sk156_.eps
SK 156 ...
  • thermal resistance: 6.2 - 3.4 K/W
51 x 12 mm
sk468_.eps
SK 468 ...

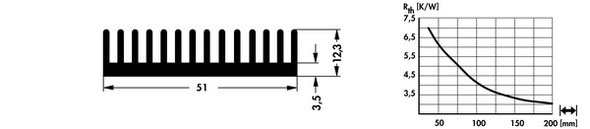

  • thermal resistance: 7 - 3.1 K/W
51 x 12.3 mm

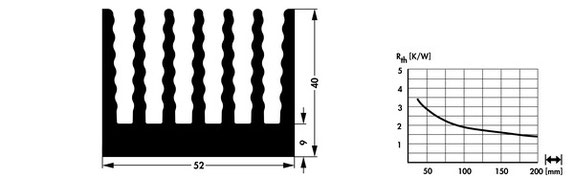

sk667_.eps
SK 667 ...
  • thermal resistance: 3.4 - 1.4 K/W
52 x 40 mm
sk180_.eps
SK 180 ...
  • thermal resistance: 6.8 - 2.9 K/W
53,3 x 16,5 mm
sk99_.eps
SK 99 ...
  • thermal resistance: 4.3 - 2.2 K/W
54 x 20 mm
sk429_.eps
SK 429 ...
  • thermal resistance: 3.35 - 1.3 K/W
54 x 55 mm

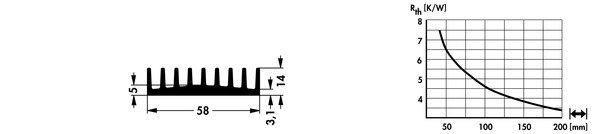

sk680_.eps
SK 680 ...
  • thermal resistance: 7.5 - 3.4 K/W
58 x 14 mm
sk670_.eps
SK 670 ...
  • thermal resistance: 5 - 2.5 K/W
45,7 x 16,51 mm
sk436_.eps

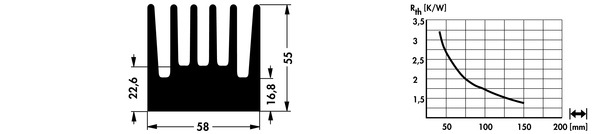

SK 436 ...
  • thermal resistance: 3.4 - 1.4 K/W
58 x 55 mm
sk50_.eps
SK 50 ...
  • thermal resistance: 2.75 - 0.75 K/W
58 x 85 mm
sk630_.eps
SK 630 ...

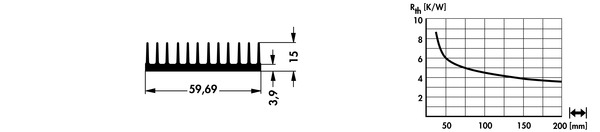

  • thermal resistance: 8.6 - 3.6 K/W
59,69 x 15 mm
sk485_.eps

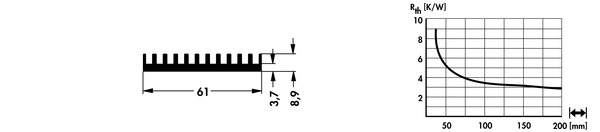

SK 485 ...
  • thermal resistance: 9 - 2.9 K/W
61 x 8.9 mm

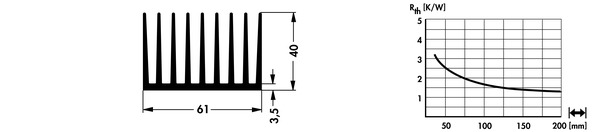

sk647_.eps
SK 647 ...
  • thermal resistance: 1.3 - 3.25 K/W
61 x 40 mm

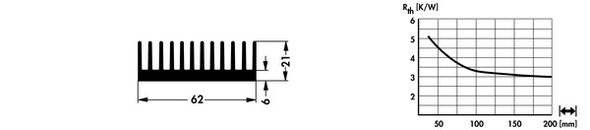

sk649_.eps
SK 649 ...
  • thermal resistance: 2.8 - 5.2 K/W
62 x 21 mm
sk444_.eps

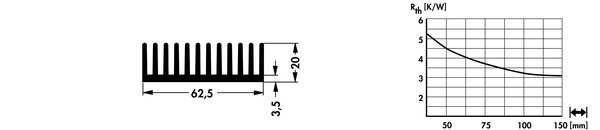

SK 444 ...
  • thermal resistance: 5.25 - 3.1 K/W
62.5 x 20 mm

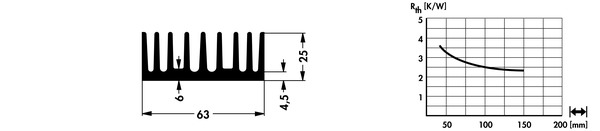

sk406_.eps
SK 406 ...
  • thermal resistance: 3.6 - 2.35 K/W
63 x 25 mm
sk668_.eps
SK 668 ...
  • thermal resistance: 2.8 - 1.4 K/W
45,7 x 16,51 mm

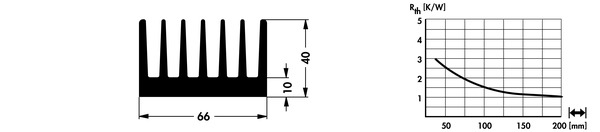

sk100_.eps
SK 100 ...
  • thermal resistance: 2.9 - 1 K/W
66 x 40 mm

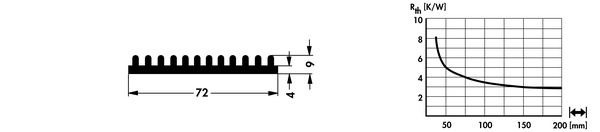

sk648_.eps
SK 648 ...
  • thermal resistance: 2.8 - 8.1 K/W
72 x 9 mm
sk594_.eps
SK 594 ...
  • thermal resistance: 5.03 - 1.6 K/W
75 x 25 mm

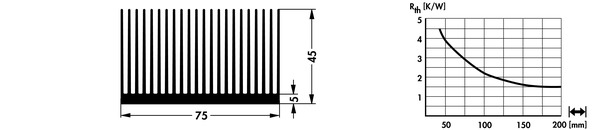

sk628_.eps
SK 628 ...
  • thermal resistance: 4.5 - 1.5 K/W
75 x 45 mm
sk663_.eps
SK 663 ...
  • thermal resistance: 4.8 - 1.7 K/W
45,7 x 16,51 mm
sk545_.eps
SK 545 ...
  • thermal resistance: 4.9 - 2.9 K/W
80 x 10 mm
sk655_.eps
SK 655 ...

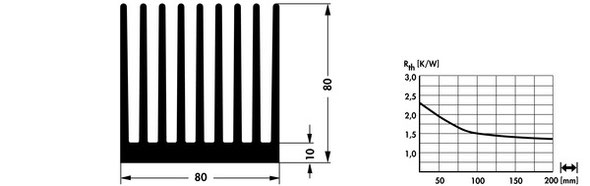

  • thermal resistance: 2.3 - 1.35 K/W
80 x 80 mm
sk612_.eps

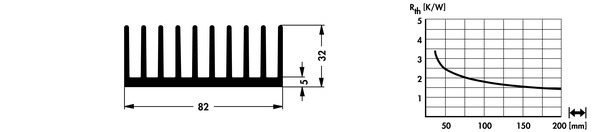

SK 612 ...
  • thermal resistance: 3.39 - 1.45 K/W
82 x 32 mm

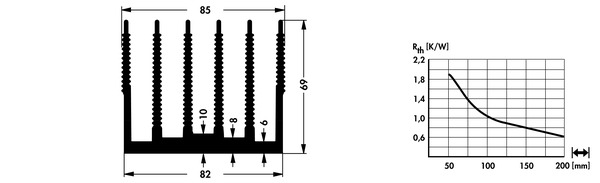

sk135_.eps
SK 135 ...
  • thermal resistance: 1.9 - 0.6 K/W
82 x 69 mm
sk407_.eps

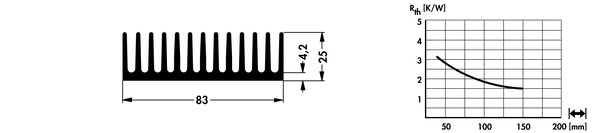

SK 407 ...
  • thermal resistance: 3.2 - 1.5 K/W
83 x 25 mm

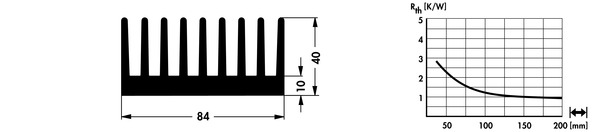

sk464_.eps
SK 464 ...
  • thermal resistance: 2.8 - 0.9 K/W
84 x 40 mm

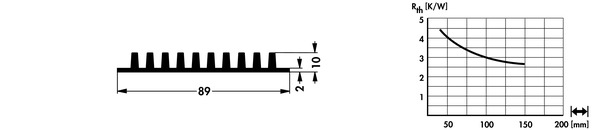

sk182_.eps
SK 182 ...
  • thermal resistance: 4.4 - 2.6 K/W
89 x 10 mm
sk624_.eps

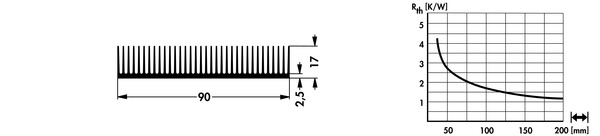

SK 624 ...
  • thermal resistance: 4.25 - 1.2 K/W
90 x 17 mm
sk507_.eps

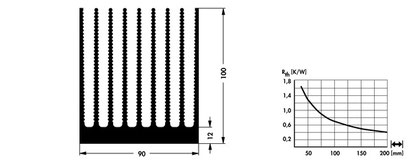

SK 507 ...
  • thermal resistance: 1.65 - 0.4 K/W
  • drilling pattern:
    • SSR 1
    • SSR 2
90 x 100 mm
sk645_.eps
SK 645 ...
  • thermal resistance: 1.25 - 2.2 K/W
98 x 40 mm

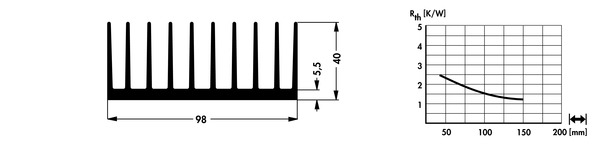

sk408_.eps
SK 408 ...
  • thermal resistance: 2.4 - 1.25 K/W
98 x 40 mm
sk546_.eps
SK 546 ...
  • thermal resistance: 4.45 - 2.5 K/W
100 x 10 mm
sk81_.eps
SK 81 ...

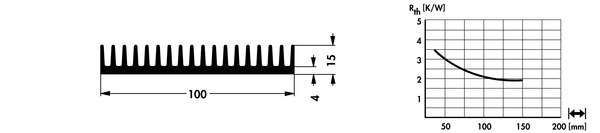

  • thermal resistance: 3.4 - 1.9 K/W
100 x 15 mm
sk505_.eps
SK 505 ...
  • thermal resistance: 4.1 - 1.6 K/W
100 x 15 mm, weigth reduced like SK 81
sk508_.eps
SK 508 ...
  • thermal resistance: 3.8 - 1.75 K/W
100 x 25 mm
sk92_.eps
SK 92 ...

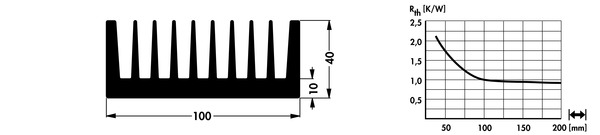

  • thermal resistance: 2.15 - 0.9 K/W
100 x 40 mm

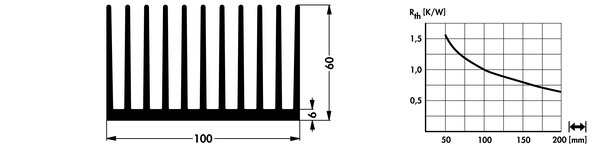

sk644_.eps
SK 644 ...
  • thermal resistance: 0.64 - 1.56 K/W
100 x 60 mm
sk684_.eps
SK 684 ...
  • thermal resistance: 1.5 - 0.7 K/W
110 x 35.7 mm
sk433_.eps
SK 433 ...
  • thermal resistance: 3 - 1.2 K/W
111.1 x 33 mm
sk121_.eps
SK 121 ...
  • thermal resistance: 1.4 - 0.5 K/W

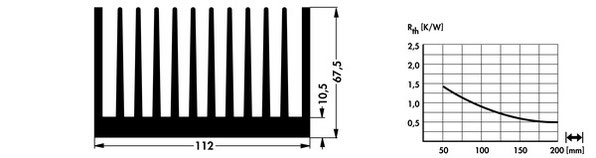

112 x 67,5 mm
sk33_.eps
SK 33 ...
  • thermal resistance: 1.15 - 0.7 K/W
  • drilling pattern:
    • SSR 1
    • SSR 2

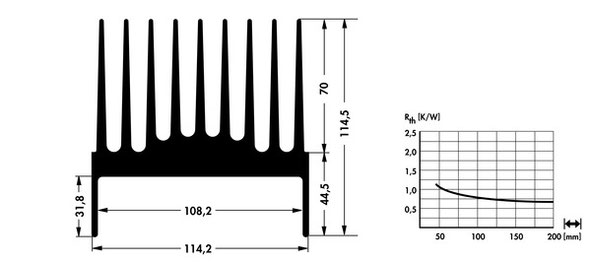

114,2 x 114,5 mm
sk411_.eps
SK 411 ...
  • thermal resistance: 1.4 - 0.9 K/W

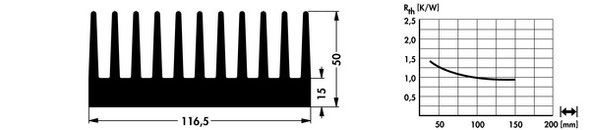

116,5 x 50 mm
sk625_.eps
SK 625 ...
  • thermal resistance: 2.17 - 1 K/W
120 x 34 mm
sk442_.eps
SK 442 ...
  • thermal resistance: 1.9 - 0.7 K/W

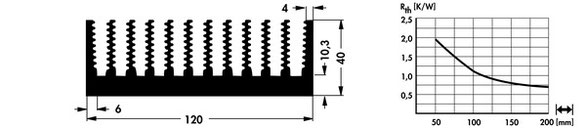

120 x 40 mm
sk595_.eps
SK 595 ...
  • thermal resistance: 1.49 - 0.58 K/W

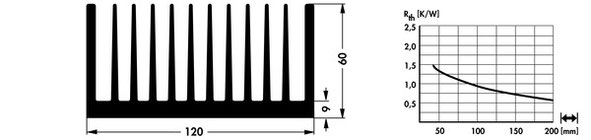

120 x 60 mm
sk463_.eps
SK 463 ...
  • thermal resistance: 2.5 - 0.9 K/W

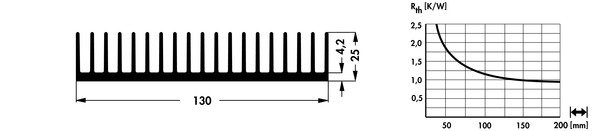

130 x 25 mm
sk613_.eps
SK 613 ...
  • thermal resistance: 1 - 0.66 K/W

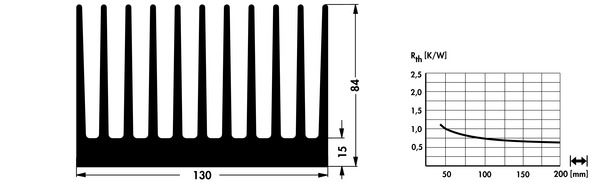

130 x 84 mm
sk466_.eps
SK 466 ...
  • thermal resistance: 1.35 - 0.6 K/W

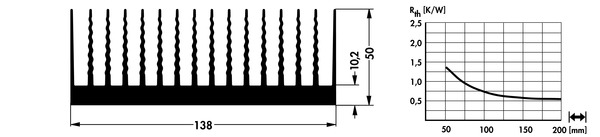

138 x 50 mm
sk413_.eps
SK 413 ...
  • thermal resistance: 1.85 - 1.1 K/W
141.05 x 33,3 mm
sk601_.eps
SK 601 ...
  • thermal resistance: 5.5 - 2 K/W

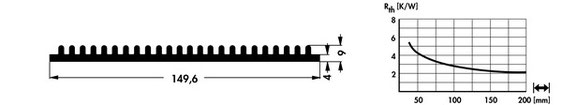

149,6 x 9 mm
sk553_.eps
SK 553 ...
  • thermal resistance: 1.8 - 1.15 K/W

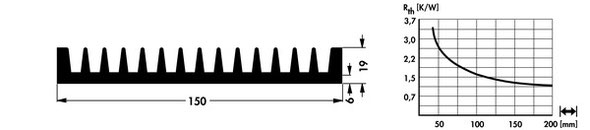

150 x 19 mm
sk132_.eps
SK 132 ...
  • thermal resistance: 1.8 - 1.15 K/W

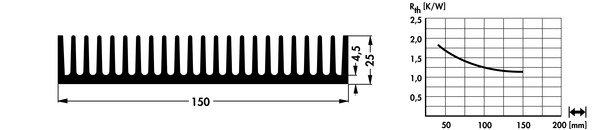

150 x 25 mm
sk410_.eps
SK 410 ...
  • thermal resistance: 2.1 - 1.3 K/W
150 x 25 mm
sk133_.eps
SK 133 ...
  • thermal resistance: 1.8 - 1.15 K/W

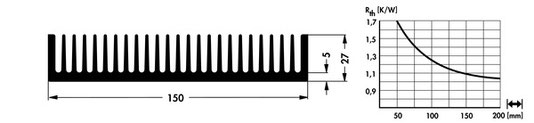

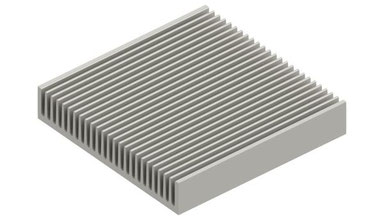

150 x 27 mm
sk58_.eps
SK 58 ...
  • thermal resistance: 1.8 - 1.15 K/W
150 x 27 mm
sk504_.eps
SK 504 ...
  • thermal resistance: 1.7 - 1.05 K/W
150 x 27 mm, weigth reduced like SK 58
sk588_.eps
SK 588 ...
  • thermal resistance: 1.7 - 0.9 K/W

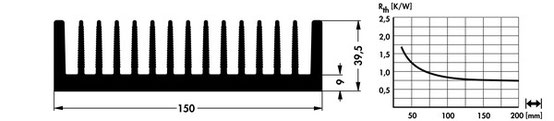

150 x 39,5 mm
sk120_.eps
SK 120 ...
  • thermal resistance: 1.7 - 0.9 K/W

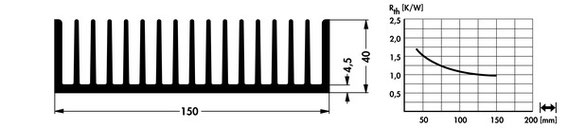

150 x 40 mm
sk155_.eps
SK 155 ...
  • thermal resistance: 1.15 - 0.7 K/W

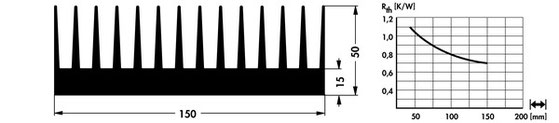

150 x 50 mm
sk154_.eps
SK 154 ...
  • thermal resistance: 0.82 - 0.48 K/W

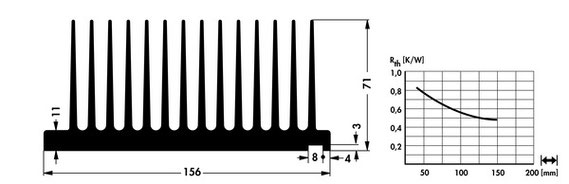

156 x 71 mm
sk417_.eps
SK 417 ...
  • thermal resistance: 2.1 - 0.75 K/W
160 x 19 mm
sk85_.eps
SK 85 ...
  • thermal resistance: 1.35 - 0.6 K/W

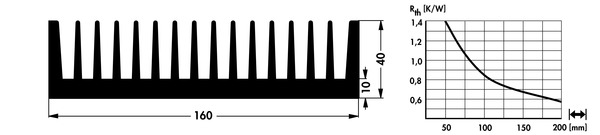

160 x 40 mm
sk503_.eps
SK 503 ...
  • thermal resistance: 1.4 - 0.58 K/W
160 x 40 mm, weigth reduced like SK 85
sk510_.eps
SK 510 ...
  • thermal resistance: 1.25 - 0.5 K/W

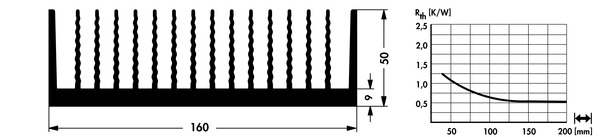

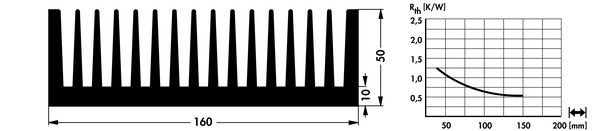

160 x 50 mm
sk416_.eps
SK 416 ...
  • thermal resistance: 1.25 - 0.55 K/W
160 x 50 mm
sk627_.eps
SK 627 ...
  • thermal resistance: 0.8 - 0.42 K/W

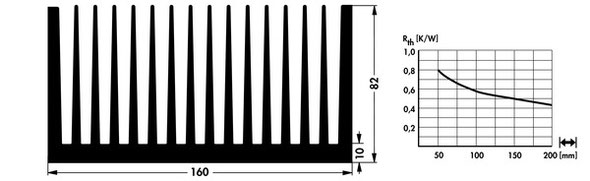

160 x 82 mm
sk119_.eps
SK 119 ...
  • thermal resistance: 1.5 - 0.75 K/W

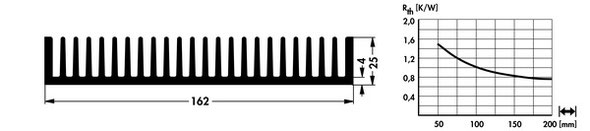

162 x 25 mm
sk412_.eps
SK 412 ...
  • thermal resistance: 1.8 - 0.5 K/W

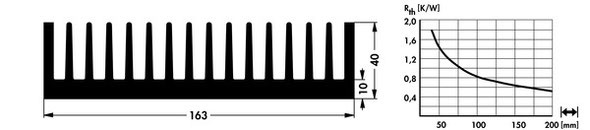

163 x 40 mm
sk421_.eps
SK 421 ...
  • thermal resistance: 2.2 - 0.9 K/W

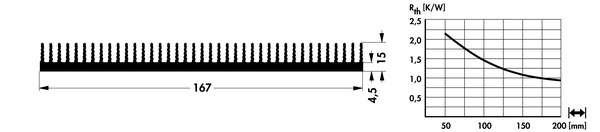

167 x 15 mm
sk405_.eps
SK 405 ...
  • thermal resistance: 3.75 - 1.7 K/W
169 x 10 mm
sk623_.eps
SK 623 ...
  • thermal resistance: 0.95 - 0.42 K/W
169 x 10 mm
sk519_.eps
SK 519 ...
  • thermal resistance: 1.5 - 0.5 K/W

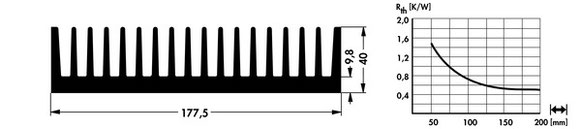

177,5 x 40 mm
sk629_.eps
SK 629 ...
  • thermal resistance: 1.6 - 0.76 K/W

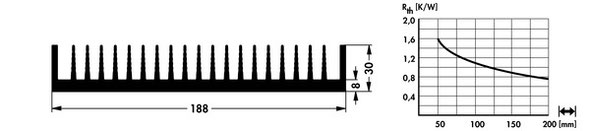

188 x 30 mm
sk90_.eps
SK 90 ...
  • thermal resistance: 0.99 - 0.4 K/W
190 x 50 mm
sk136_.eps
SK 136 ...
  • thermal resistance: 1.8 - 0.8 K/W
200 x 15 mm
sk166_.eps
SK 166 ...
  • thermal resistance: 2.1 - 0.75 K/W
200 x 15 mm
sk113_.eps
SK 113 ...
  • thermal resistance: 1.8 - 0.8 K/W
200 x 20 mm
sk42_.eps
SK 42 ...
  • thermal resistance: 1.65 - 0.7 K/W
200 x 25 mm
sk94_.eps
SK 94 ...
  • thermal resistance: 1.7 - 0.75 K/W
200 x 25 mm
sk502_.eps
SK 502 ...
  • thermal resistance: 1.1 - 0.425 K/W
200 x 39,9 mm, weight reduced like SK 47
sk47_.eps
SK 47 ...
  • thermal resistance: 1.05 - 0.45 K/W
200 x 40 mm
sk591_.eps
SK 591 ...
  • thermal resistance: 1.49 - 0.4 K/W
200 x 60 mm
sk520_.eps
SK 520 ...
  • thermal resistance: 0.7 - 0.35 K/W
200 x 83 mm
sk193_.eps
SK 193 ...
  • thermal resistance: 0.9 - 0.41 K/W
213 x 40 mm
sk557_.eps
SK 557 ...
  • thermal resistance: 0.9 - 0.41 K/W
216 x 77 mm
sk102_.eps
SK 102 ...
  • thermal resistance: 0.62 - 0.28 K/W
216 x 83 mm
sk168_.eps
SK 168 ...
  • thermal resistance: 1 - 0.6 K/W
226,5 x 40 mm
sk580_.eps
SK 580 ...
  • thermal resistance: 0.78 - 0.25 K/W
235 x 60 mm
sk118_.eps
SK 118 ...
  • thermal resistance: 1.2 - 0.56 K/W
245 x 25 mm
sk49_.eps
SK 49 ...
  • thermal resistance: 1.25 - 0.5 K/W
250 x 28 mm
sk199_.eps
SK 199 ...
  • thermal resistance: 0.9 - 0.36 K/W
250 x 40 mm
sk555_.eps
SK 555 ...
  • thermal resistance: 0.9 - 0.3 K/W
250 x 40 mm
sk524_.eps
SK 524 ...
  • thermal resistance: 0.82 - 0.35 K/W
250 x 40 mm
sk91_.eps
SK 91 ...
  • thermal resistance: 0.97 - 0.34 K/W
250 x 40 mm
sk622_.eps
SK 622 ...
  • thermal resistance: 0.73 - 0.3 K/W
250 x 50 mm
sk678_.eps
SK 678 ...
  • thermal resistance: 0.69 - 0.46 K/W
250 x 83 mm
sk438_.eps
SK 438 ...
  • thermal resistance: 0.49 - 0.26 K/W
250 x 83 mm
sk190_.eps
SK 190 ...
  • thermal resistance: 0.95 - 0.42 K/W
258 x 40 mm
sk614_.eps
SK 614 ...
  • thermal resistance: 0.75 - 0.47 K/W
258 x 40 mm
sk149_.eps
SK 149 ...
  • thermal resistance: 1.1 - 0.65 K/W
265 x 50 mm




sk139_.eps
SK 139 ...
  • thermal resistance: 0.7 - 0.24 K/W
265 x 74 mm
sk583_.eps
SK 583 ...
  • thermal resistance: 0.7 - 0.24 K/W
282 x 28 mm
sk682_.eps
SK 682 ...
  • thermal resistance: 1.35 - 0.54 K/W
286,4 x 20 mm
sk198_.eps
SK 198 ...
  • thermal resistance: 1.3 - 0.5 K/W
300 x 15 mm
sk671_.eps
SK 671 ...
  • thermal resistance: 1.35 - 0.48 K/W
45,7 x 16,51 mm
sk446_.eps
SK 446 ...
  • thermal resistance: 1.3 - 0.43 K/W
300 x 27 mm
sk56_.eps
SK 56 ...
  • thermal resistance: 0.59 - 0.3 K/W
300 x 40 mm
sk501_.eps
SK 501 ...
  • thermal resistance: 0.5 - 0.3 K/W
300 x 40mm, weigth reduced like SK 56
sk568_.eps
SK 568 ...
  • thermal resistance: 0.5 - 0.3 K/W
300 x 60 mm
sk157_.eps
SK 157 ...
  • thermal resistance: 0.4 - 0.21 K/W
300 x 83,5 mm
sk656_.eps
SK 656 ...
  • thermal resistance: 0.55 - 0.25 K/W
300 x 83,5 mm
sk101_.eps
SK 101 ...
  • thermal resistance: 0.7 - 0.31 K/W
304 x 39,5 mm
sk579_.eps
SK 579 ...
  • thermal resistance: 1.43 - 0.46 K/W
320 x 20 mm
sk66_.eps
SK 66 ...
  • thermal resistance: 0.82 - 0.32 K/W
338 x 32 mm
sk523_.eps
SK 523 ...
  • thermal resistance: 0.65 - 0.375 K/W
350 x 40 mm
sk439_.eps
SK 439 ...
  • thermal resistance: 0.74 - 0.425 K/W
380 x 25 mm
sk685_.eps
SK 685 ...
  • thermal resistance: 0.6 - 0.25 K/W
380 x 35 mm
sk479_.eps
SK 479 ...
  • thermal resistance: 0.59 - 0.28 K/W
400 x 40 mm
sk93_.eps
SK 93 ...
  • thermal resistance: 0.58 - 0.31 K/W
400 x 40 mm
sk651_.eps
SK 651 ...
  • thermal resistance: 0.52 - 0.27 K/W
400 x 42 mm
sk650_.eps
