フィッシャーエレクトロニック(Fischer Elektronik)プリント基板搭載用アルミ押出ヒートシンク

*下の画像はあくまでイメージですので、詳細に関しては、メーカーホームページにてご確認願います。

*品名もしくは型番をクリックいただくとメーカーホームページに移動します。

*穴あけなどの追加工、標準品との長さ違い、などご要望ございましたらお気軽にご相談ください。

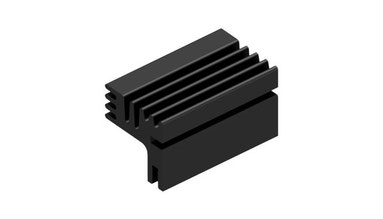

sk68.tif

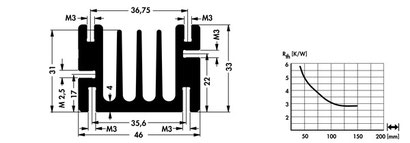

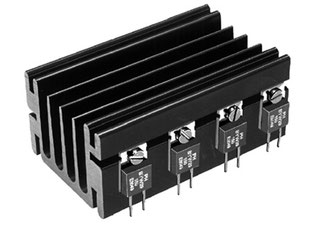

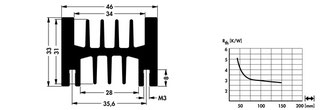

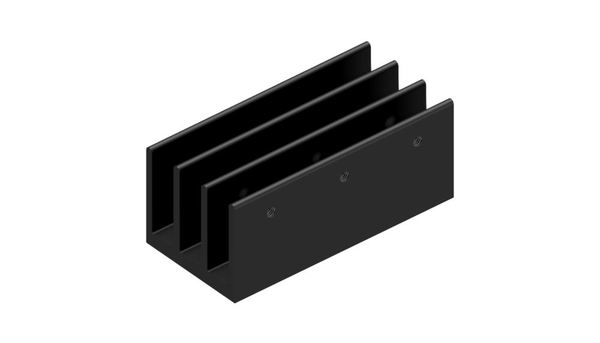

SK 68 ...
  • length: 37.5 mm / 50 mm / 75 mm / 94 mm / 100 mm / 1000 mm
46 x 33 mm, profile threads
  • thread channel for M3 screws
  • screw-in solder pin M3 (art. no.: ELS 3)
sk112.tif

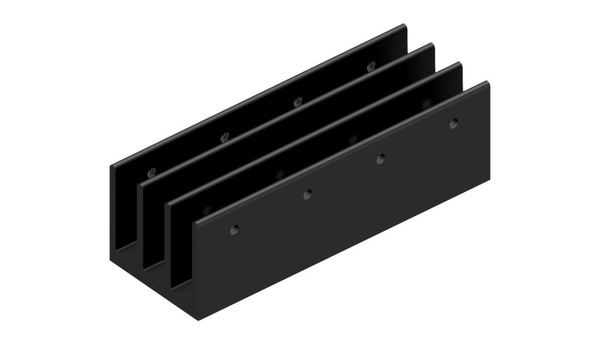

SK 112 ...
  • length: 37.5 mm / 50 mm / 75 mm / 94 mm / 100 mm / 1000 mm
46 x 33 mm, profile threads
  • thread channel for M3 screws
  • screw-in solder pin M3 (art. no.: ELS 3)
sk125_.eps

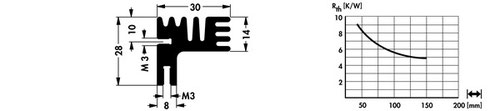

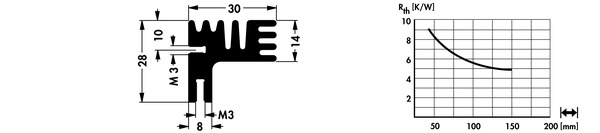

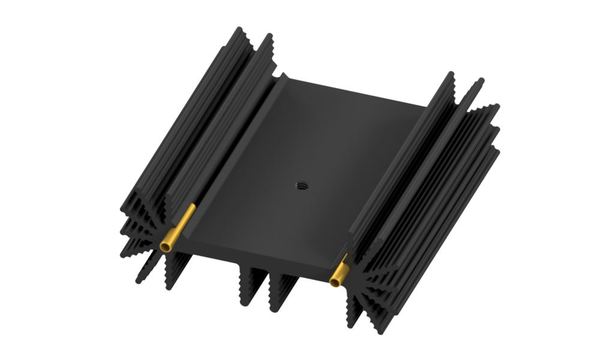

SK 125 ...
  • length: 50 mm / 84 mm / 94 mm / 1000 mm
30 x 28 mm, for use on Euro cards, profile thread
sk96.tif

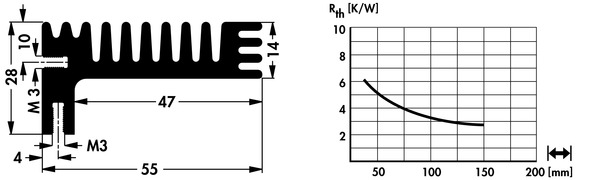

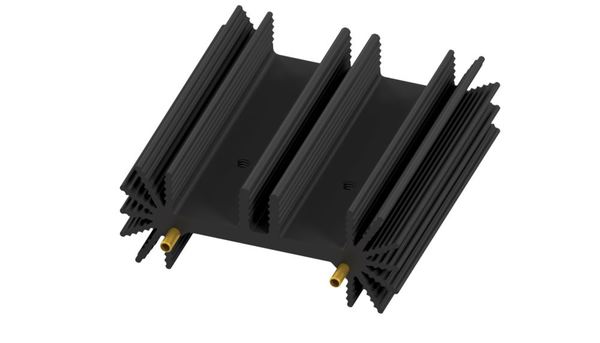

SK 96 ...
  • length: 50 mm / 84 mm / 94 mm / 1000 mm
55 x 28 mm, for use on Euro cards, profile thread
sk138_.eps

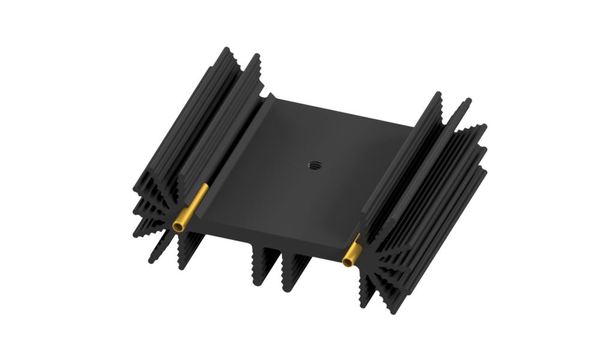

SK 138 ...
  • length: 84 mm / 94 mm / 1000 mm
50 x 28 mm, for use on Euro cards, profile thread
sk451_.eps

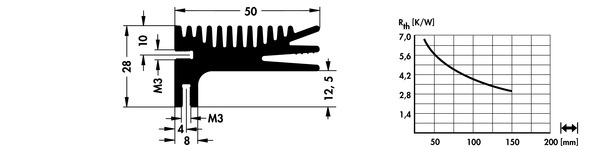

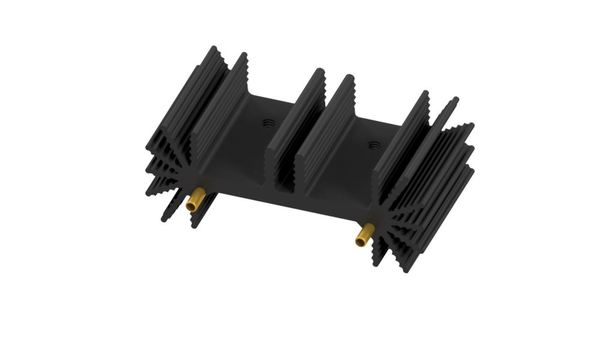

SK 451 ...
  • length: 84 mm / 94 mm / 1000 mm
50 x 28 mm, for use on Euro cards, profile thread
sk609_.eps
SK 609 ...
  • length: 50 mm / 84 mm / 94 mm / 1000 mm
30 x 31 mm, for use on Euro cards, profile thread
sk610_.eps
SK 610 ...
  • length: 50 mm / 84 mm / 94 mm / 1000 mm
55 x 31 mm, for use on Euro cards, profile thread
sk611_.eps
SK 611 ...
  • length: 84 mm / 94 mm / 1000 mm
50 x 28 mm, for use on Euro cards, profile thread
sk518.tif

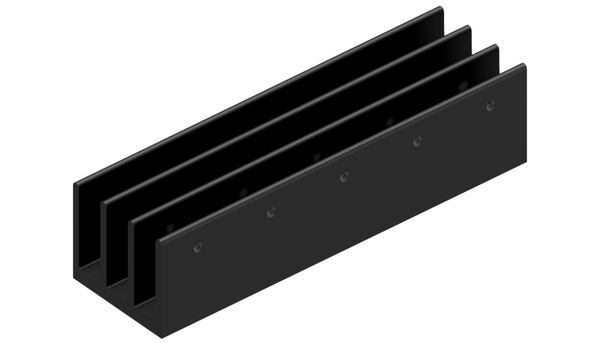

SK 518
30 x 45 mm, pcb heatsinks with and without threaded rail
  • transistor mounting onto the heatsink using a slide-in rail with M3 thread…
sk414.tif

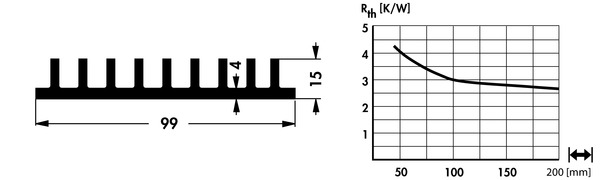

SK 414 ...
  • length: 100 mm / 233.4 mm / 1000 mm
99 x 15 mm, for 19" plug in unit
sk105.tif

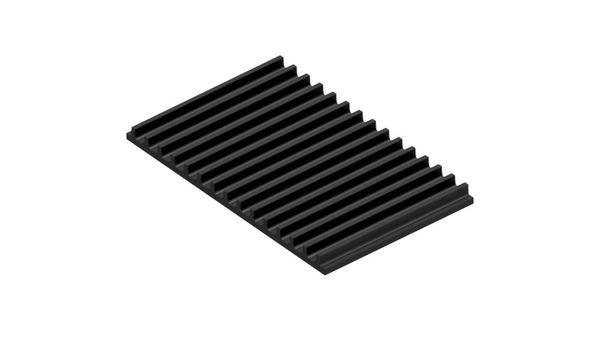

SK 105 ...
  • length: 37.5 mm / 50 mm / 75 mm / 100 mm / 150 mm / 200 mm / 233.4 mm / 1000 mm
159 x 10 mm, for 19" plug in unit
sk44.tif

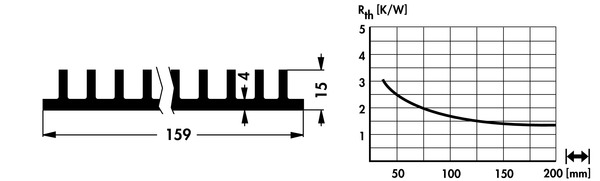

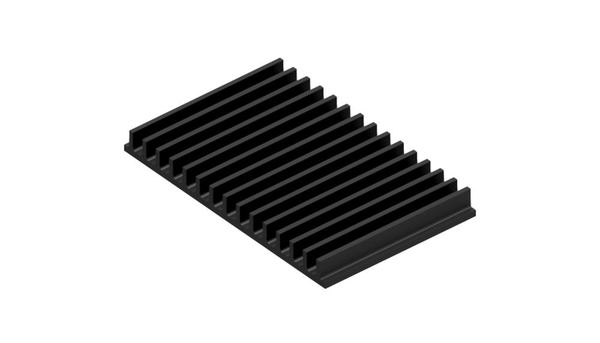

SK 44 ...
  • length: 50 mm / 75 mm / 100 mm / 150 mm / 200 mm / 233.4 mm / 1000 mm
159 x 15 mm, for 19" plug in unit
sk415.tif

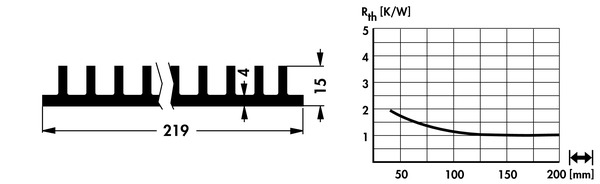

SK 415 ...
  • length: 37.5 mm / 100 mm / 150 mm / 1000 mm
219 x 15 mm, for 19" plug in unit
sk515.tif
SK 515
10,7 x 15 mm, attachable heatsinks with and without screw on fixing
  • compact heatsink in transistor dimensions
  • for horizontal and vertical transistors…
sk516.tif
SK 516
10 x 21 mm, attachable heatsinks with and without screw on fixing
  • compact heatsink in transistor dimensions
  • for horizontal and vertical transistors…
sk515_05.tif
SK 515 05
10,7 x 15 mm, attachable heatsinks with and without screw on fixing
sk525.tif
SK 525 ...
19.4 x 28 mm, attachable heatsinks with and without solder pins
sk526.tif
SK 526 ...
22 x 35 mm, atachable heatsinks with solder pins

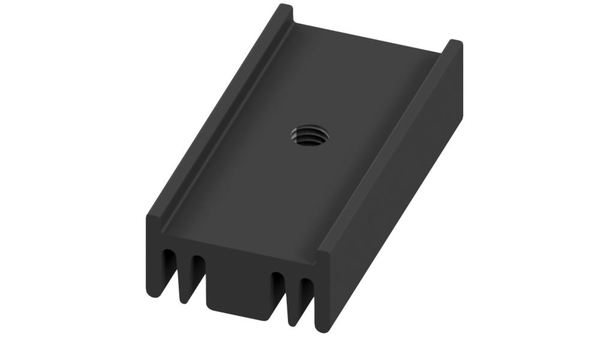

sk454_m3.tif

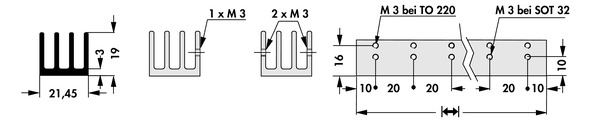

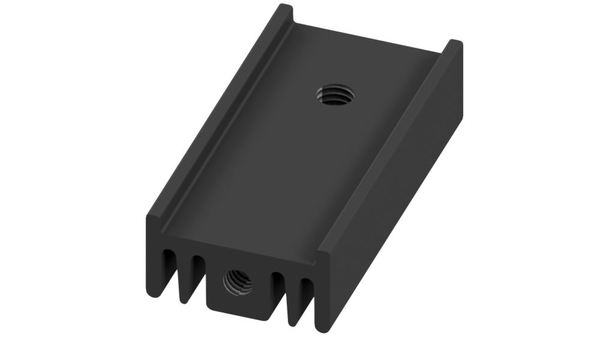

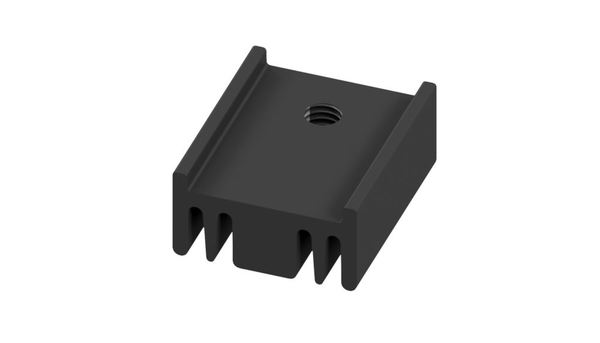

SK 454 ... M3
  • length: 20 mm / 40 mm / 60 mm / 80 mm / 100 mm
21.45 x 19 mm
sk452_m3.tif

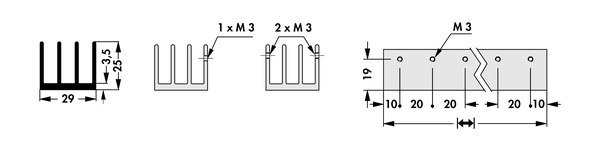

SK 452 ... M3
  • length: 20 mm / 40 mm / 60 mm / 80 mm / 100 mm
29 x 25 mm, for transistor-design TO 218, TO 220, TO 247, TO 3P

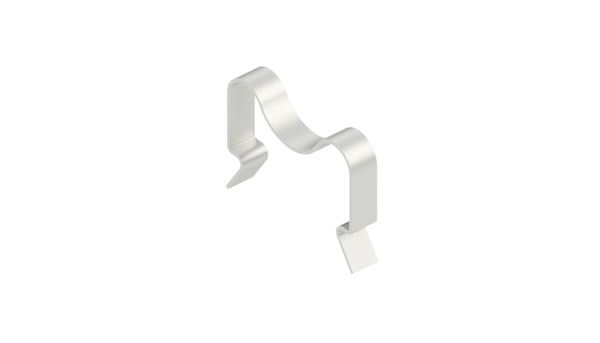

sk104_stc.tif

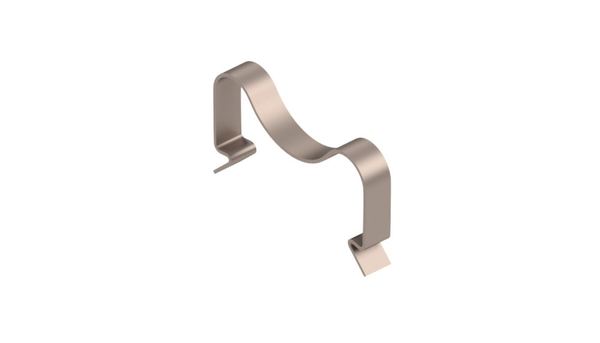

SK 104 ... STC
SK 104 ... STIC
SK 104 ... STCB
34.9 x 12.7 mm, for semiconductor clip-mounting

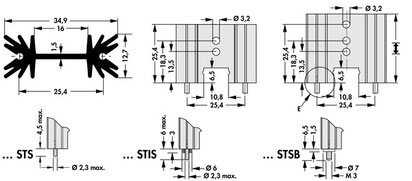

sk104_sts.tif

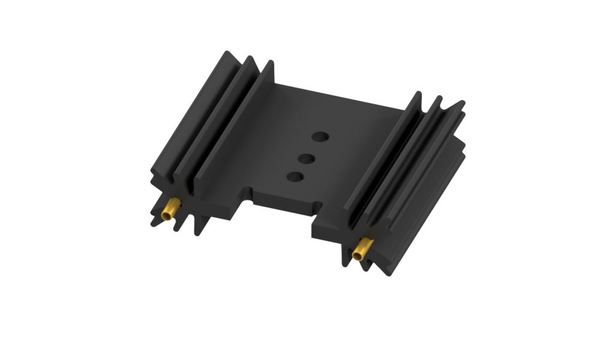

SK 104 ... STS
SK 104 ... STIS
SK 104 ... STSB
34.9 x 12.7 mm, for semiconductor screw-mounting
sk104_ls.tif
SK 104 ... LS
34.9 x 12.7 mm, horizontal for semiconductor-screw on mounting
sk600stc.tif
SK 600 ... STC
SK 600 ... STIC
SK 600 ... STCB
35 x 25,4 mm, for semiconductor clip-mounting
sk600sts.tif
SK 600 ... STS
SK 600 ... STIS
SK 600 ... STSB
35 x 25,4 mm, for semiconductor screw-mounting

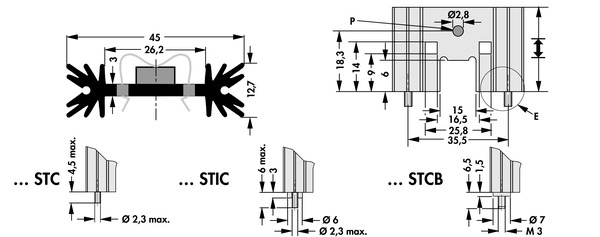

sk409_stc.tif
SK 409 ... STC
SK 409 ... STIC
SK 409 ... STCB
45 x 12.7 mm, for semiconductor clip-mounting
sk409_sts.tif

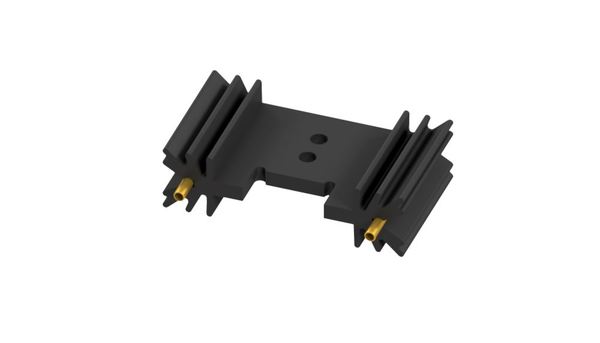

SK 409 ... STS
SK 409 ... STIS
SK 409 ... STSB
45 x 12.7 mm, for semiconductor screw-mounting

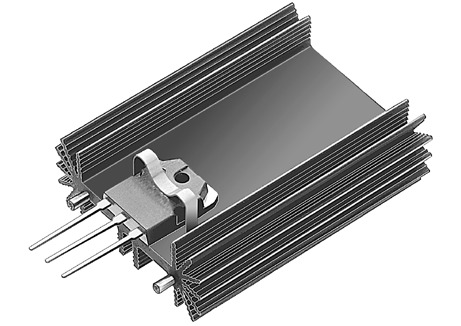

sk459_stc.tif
SK 459 ... STC
SK 459 ... STIC
SK 459 ... STCB
50 x 20 mm, for semiconductor clip-mounting

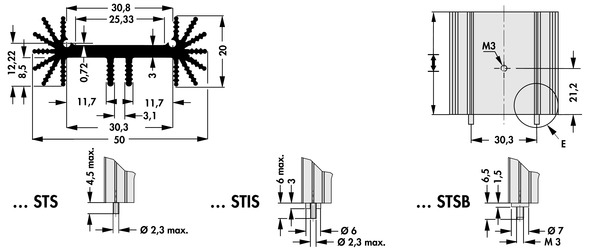

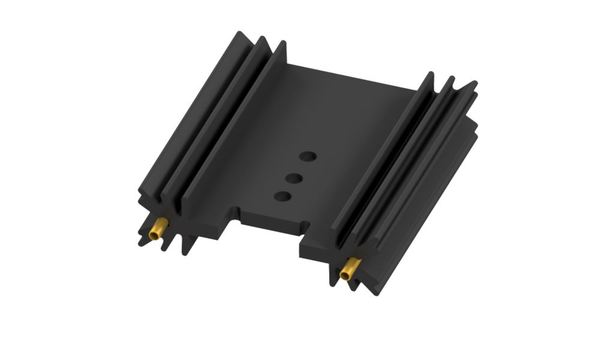

sk459_sts.tif

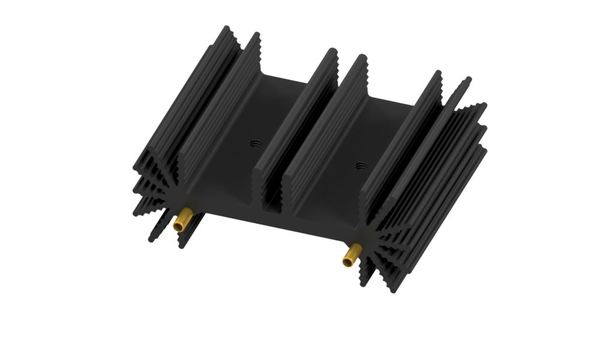

SK 459 ... STS
SK 459 ... STIS
SK 459 ... STSB
50 x 20 mm, for semiconductor screw-mounting
sk459_m_sts.tif
SK 459 ... M ...
50 x 20 mm, for semiconductor screw-mounting
sk459_to220_sts.tif
SK 459 ... TO 220 ...
50 x 20 mm, for semiconductor screw-mounting

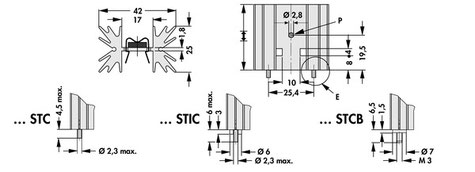

sk129_stc.tif
SK 129 ... STC
SK 129 ... STIC
SK 129 ... STCB
42 x 25 mm, for semiconductor clip-mounting

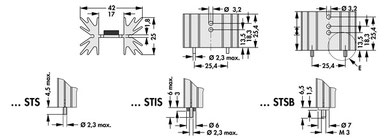

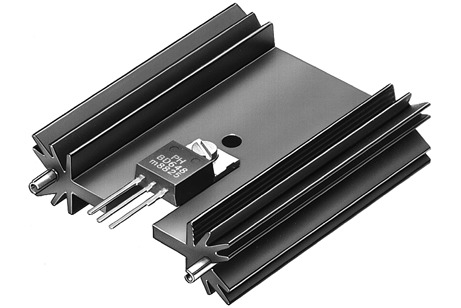

sk129_sts.tif

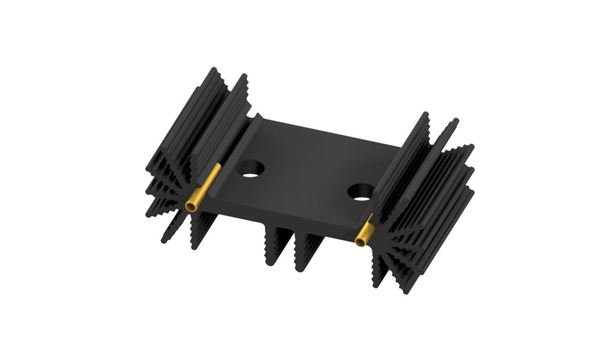

SK 129 ... STS
SK 129 ... STIS
SK 129 ... STSB
42 x 25 mm, for semiconductor screw-mounting
sk185_stc.tif
SK 185 ... STC
65 x 18 mm, for semiconductor clip-mounting
sk185_sts.tif
SK 185 ... STS
65 x 18 mm, for semiconductor screw-mounting

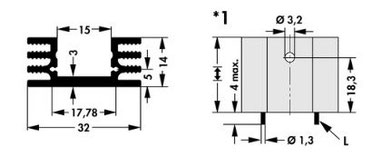

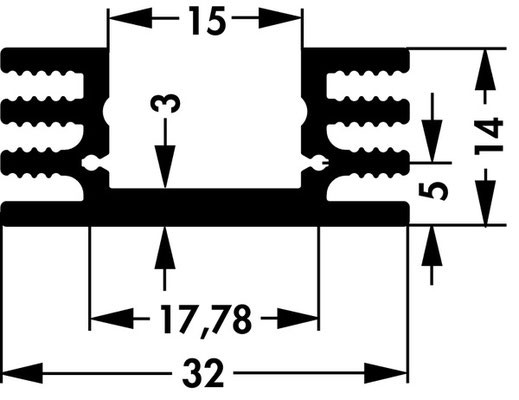

sk75.tif
SK 75

32 x 14 mm, for semiconductor screw-mounting

*1 = versions with solder pins; *2 = versions without solder pins; L = solderable pins

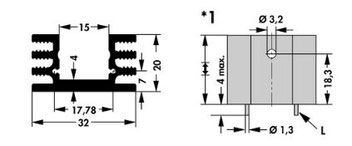

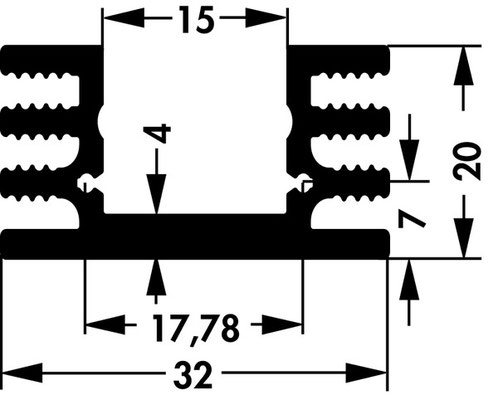

sk76.tif
SK 76
*1
sk145_stc.tif
SK 145 ... STC
29 x 12 mm, for semiconductor clip-mounting
sk145_sts.tif
SK 145 ... STS
29 x 12 mm, for semiconductor screw-mounting
sk126_.eps
SK 126
34.5 x 12.7 mm, for transistor-design TO 218, TO 220, TO 247, TO 248
sk95_sts.tif

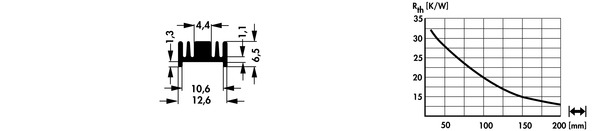

SK 95 ... STS
  • length: 6.5 mm
12.6 x 6.5 mm, for transistor-design SOT 32. TO 220
sk95.tif
SK 95
  • length: 6.5 mm
12.6 x 6.5 mm, for transistor-design SOT 32. TO 220
sk437_stc.tif
SK 437 ... STC
  • length: 16 mm
16 x 16 mm, for transistor-design TO 218, TO 220, TO 247
sk437_sts.tif
SK 437 ... STS
  • length: 16 mm
16 x 16 mm, for transistor-design TO 218, TO 220, TO 247
sk437_stc2.tif
SK 437 ... STC 2
  • length: 16 mm
16 x 16 mm, for transistor-design TO 218, TO 220, TO 247
sk437_sts2.tif
SK 437 ... STS 2
  • length: 16 mm
16 x 16 mm, for transistor-design TO 218, TO 220, TO 247
sk470_sts.tif
SK 470 ... STS
  • length: 8 mm
11.8 x 8 mm, for transistor-design TO 220, SOT 32
sk469_sts.tif
SK 469 ... STS
  • length: 15.24 mm
13,5 x 15,24 mm, for transistor-designs TO 220, SOT 32

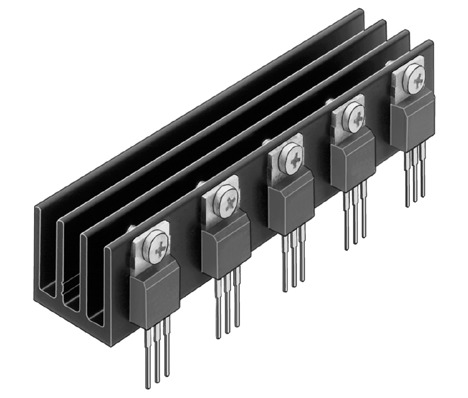

sk484.tif
SK 484
  • length: 25 mm / 37.5 mm / 50 mm / 75 mm
94 x 11.5 mm, for transistor-design TO 218, TO 220, TO 247, TO 264, TO 3 P
sk454_m3_l.tif

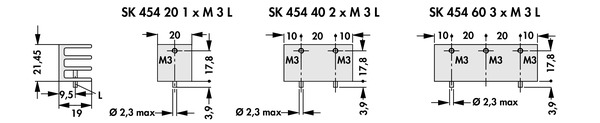

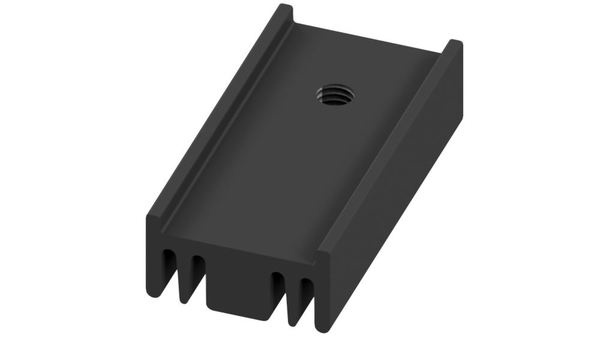

SK 454 ... M3 L
  • length: 20 mm / 40 mm / 60 mm
21.45 x 19 mm, for transistor-design TO 220, SOT 32
sk448_m3_l.tif
SK 448 ... M3 L
  • length: 20 mm / 40 mm / 60 mm
27.95 x 12.5 mm, for transistor-design TO 218, TO 220. TO 247. TO 3 P
sk400_m3_l.tif
SK 400 ... M3 L
  • length: 20 mm / 40 mm / 60 mm
33 x 10 mm, for transistor-design TO 218, TO 220, TO 247, TO 3 P
sk456_m3_l.tif
SK 456 ... M3 L
  • length: 20 mm / 40 mm / 60 mm
40 x 6 mm, for transistor-design TO 218, TO 220, TO 247, TO 3 P
sk460_stc.tif
SK 460 ... STC
SK 460 ... STIC
SK 460 ... STCB
  • length: 20 mm
34 x 20 mm, for semiconductor clip-mounting
sk460_sts.tif
SK 460 25 STS
SK 460 37,5 STS
SK 460 50 STIS
  • length: 20 mm
34 x 20 mm, for semiconductor screw-mounting
ダウンロード
Fischer Elektronik 基板搭載用アルミ押出ヒートシンク カタログ
PDFファイル 3.5 MB
