連結ピンヘッダ 2mmピッチ Fischer Elektronik


SLY1 2㎜ピッチ スルーホール用ピンヘッダ Fischer Elektronik

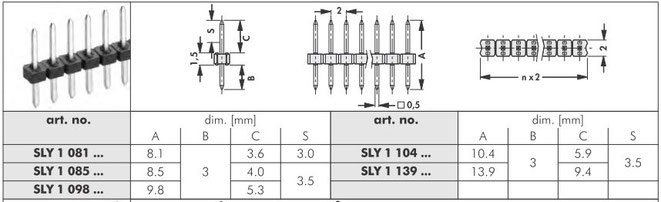

SLY 1

2㎜ピッチ スルーホール用ピンヘッダ

0.5mm角ピン  1-50ピン

sly_01.tif
SLY 1 081
□ 0.5 mm, straight
sly_01.tif
SLY 1 085
□ 0.5 mm, straight
sly_01.tif
SLY 1 098
□ 0.5 mm, straight
sly_01.tif
SLY 1 104
□ 0.5 mm, straight
sly_01.tif
SLY 1 139
□ 0.5 mm, straight
SLY2 2㎜ピッチ スルーホール用ピンヘッダ 2列 Fischer Elektronik

SLY 2

2㎜ピッチ スルーホール用ピンヘッダ 2列

0.5mm角ピン  4-100ピン

sly_02.tif
SLY 2 081
□ 0.5 mm, straight
sly_02.tif
SLY 2 085
□ 0.5 mm, straight
sly_02.tif
SLY 2 098
□ 0.5 mm, straight
sly_02.tif
SLY 2 104
□ 0.5 mm, straight
sly_02.tif
SLY 2 139
□ 0.5 mm, straight
SLY3 2㎜ピッチ スルーホール用ピンヘッダ ライトアングル  Fischer Elektronik

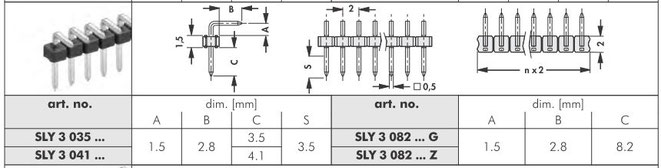

SLY 3

2㎜ピッチ スルーホール用ピンヘッダ ライトアングル

0.5mm角ピン  1-50ピン

sly_03.tif
SLY 3 035
□ 0.5 mm, angled
sly_03.tif
SLY 3 041
□ 0.5 mm, angled
sly_03.tif
SLY 3 082 ... G
□ 0.5 mm, angled
sly_03.tif
SLY 3 082 ... Z
□ 0.5 mm, angled
SLY 4 2㎜ピッチ スルーホール用ピンヘッダ ライトアングル 2列  Fischer Elektronik

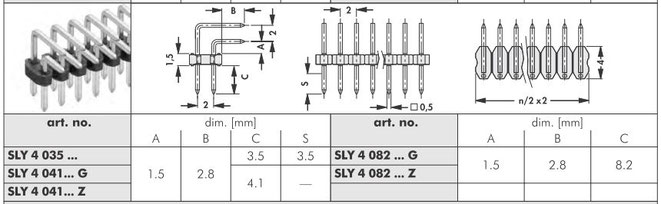

SLY 4

2㎜ピッチ スルーホール用ピンヘッダ ライトアングル 2列

0.5mm角ピン  4-100ピン

sly_04.tif
SLY 4 035
□ 0.5 mm, angled
sly_04.tif
SLY 4 041 ... G
□ 0.5 mm, angled
sly_04.tif
SLY 4 041 ... Z
□ 0.5 mm, angled
sly_04.tif
SLY 4 082 ... G
□ 0.5 mm, angled
sly_04.tif
SLY 4 082 ... Z
□ 0.5 mm, angled
  Fischer Elektronik SLY 5   2㎜ピッチ スルーホール用ピンヘッダ 基板対基板

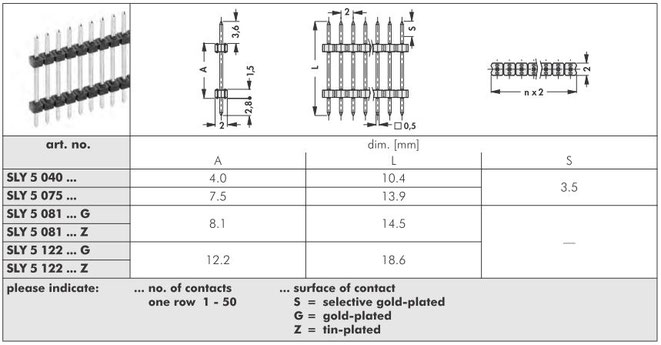

SLY 5

2㎜ピッチ スルーホール用ピンヘッダ 基板対基板

0.5mm角ピン  1-50ピン

sly_05.tif
SLY 5 040
  • L

    10.4 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_05.tif
SLY 5 075
  • L

    13.9 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_05.tif
SLY 5 081 ... G
  • L

    14.5 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_05.tif
SLY 5 081 ... Z
  • L

    14.5 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_05.tif
SLY 5 122 ... G
  • L

    18.6 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_05.tif
SLY 5 122 ... Z
  • L

    18.6 mm
one row, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
  Fischer Elektronik SLY 5   2㎜ピッチ スルーホール用ピンヘッダ 基板対基板

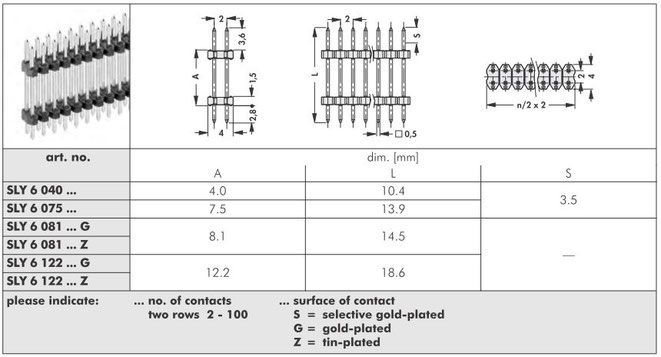

SLY 6

2㎜ピッチ スルーホール用ピンヘッダ 基板対基板 2列

0.5mm角ピン  2-100ピン

sly_06.tif
SLY 6 040
  • L

    10.4 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_06.tif
SLY 6 075
  • L

    13.9 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_06.tif
SLY 6 081 ... G
  • L

    14.5 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_06.tif
SLY 6 081 ... Z
  • L

    14.5 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_06.tif
SLY 6 122 ... G
  • L

    18.6 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…
sly_06.tif
SLY 6 122 ... Z
  • L

    18.6 mm
two rows, □ 0.5 mm, suitable for female headers BLY ...
  • are used for interconnections of stacked PCBs
  • within the total length of the pin the insulator position can be changed as required ... Design specification-sheet…

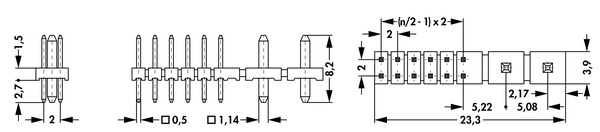

SLY 13 SHK 14 02 G

スルーホール用

シグナル / ハイパワーコンタクト

(ピッチ混合ピンヘッダ)



2㎜ピッチ(0.5mm角ピン)2列と5.08㎜

(1.14㎜角ピン)1列で構成されています。



ご希望のピン数あればご相談ください。

SLY 13 SHK 14 02 G  シグナル / ハイパワーコンタクト (ピッチ混合ピンヘッダ) Fischer Elektronik

SLY 13 SHK 14 02 G  シグナル / ハイパワーコンタクト (ピッチ混合ピンヘッダ) Fischer Elektronik

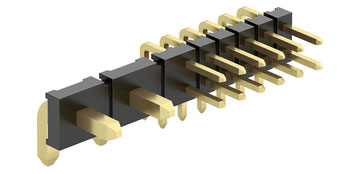

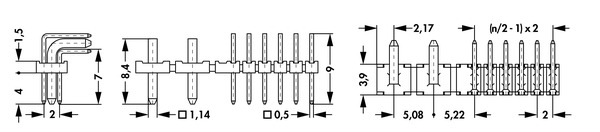

SLY 14 SHK 14 02 G

スルーホール用

シグナル / ハイパワーコンタクト ライトアングル

(ピッチ混合ピンヘッダ)



2㎜ピッチ(0.5mm角ピン)2列と5.08㎜

(1.14㎜角ピン)1列で構成されています。



ご希望のピン数あればご相談ください。

SLY 14 SHK 14 02 G  シグナル / ハイパワーコンタクト (ピッチ混合ピンヘッダ) Fischer Elektronik

SLY 14 SHK 14 02 G  シグナル / ハイパワーコンタクト (ピッチ混合ピンヘッダ) Fischer Elektronik
